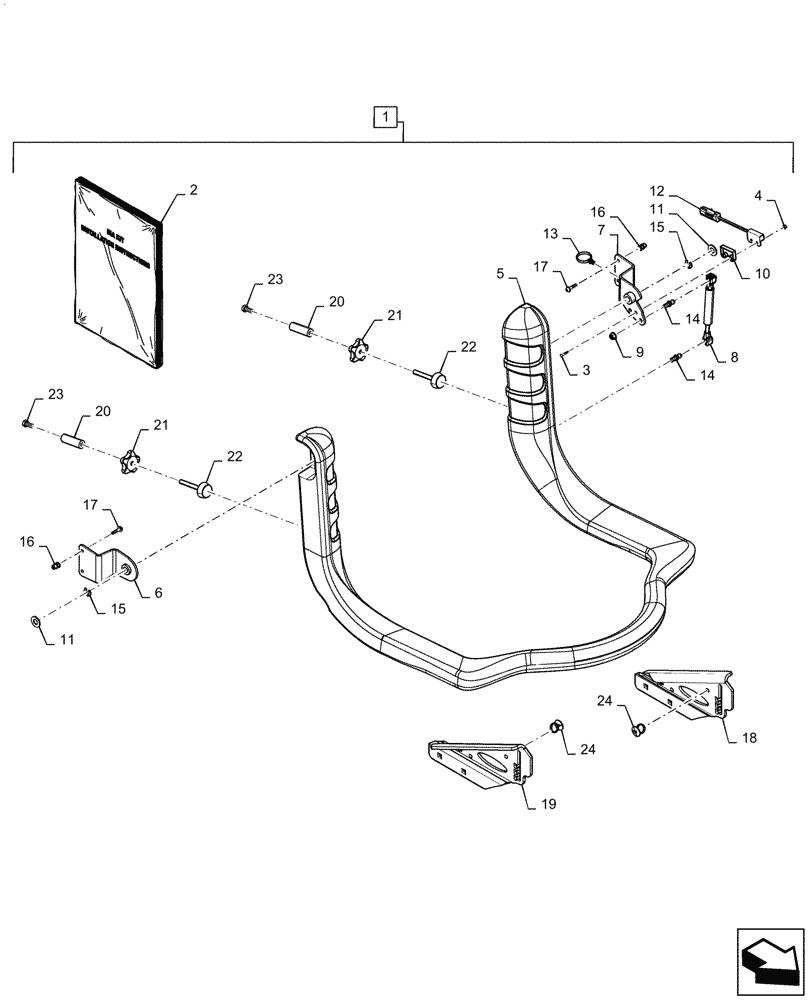

Запчасти Case IH TR270 (88.100.90[26]) - DIA KIT, LAP BAR (88) - ACCESSORIES

1

48054706

Incl 2 - 24

KIT

1шт.

2

48054715

Sheet

INSTRUCTION

1шт.

3

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

2шт.

4

385681

NUT,M4 x 0.7, Cl 8

2шт.

5

84201339

BAR

Lap, Foam Rubber Coating

1шт.

6

84239191

RH, Seat Bar

BRACKET, PIVOT

1шт.

7

84239192

LH, Seat Bar

BRACKET, PIVOT

1шт.

8

84371064

GAS STRUT,180mm Extended, 148.74mm Compressed

Spring, Lap Bar Assist

1шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

11

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

12

87392235

SENSOR

Lap Bar

1шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap, Fir Tree

1шт.

14

189609A1

BALL STUD,M8 x 1.25

10mm Ball

2шт.

15

D143415

SNAP RING,0.50” ID, Klipring

2шт.

16

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

17

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

4шт.

18

84410989

BRACKET

LH

1шт.

19

84410990

BRACKET

RH

1шт.

20

84385623

MOUNT

Lap Bar Stop

2шт.

21

87639912

KNOB

Star, 3/8"

2шт.

22

87639914

STOP

Seat Bar Pivot

2шт.

23

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

24

378884A2

STRAP,254mm L

Panel Tie

4шт.
