Запчасти Case IH TR270 (10.210.AF) - FUEL LINE & TANK (24-NOV-2015 AND AFTER) (10) - ENGINE

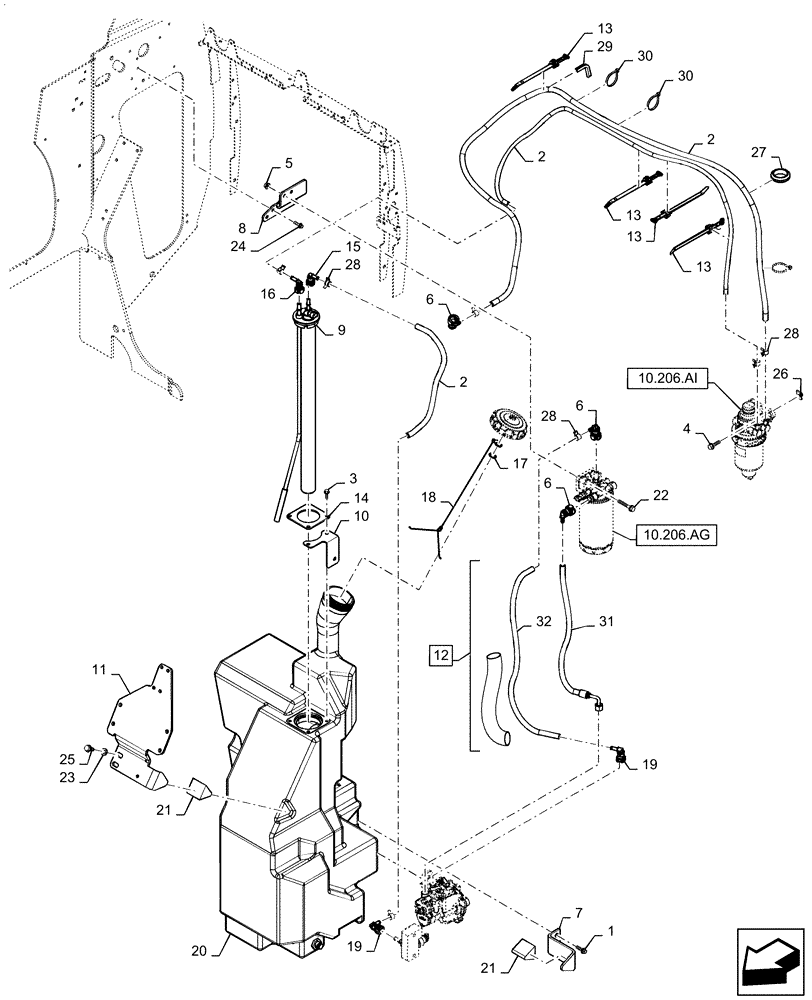

Схема запчастей Case IH TR270 - (10.210.AF) - FUEL LINE & TANK (24-NOV-2015 AND AFTER) (10) - ENGINE
10.206.ai
22
5
29
1
14
18
19
27
20
8
30
13
26
6
13
2
9
24
6
31
28
3
28
13
6
21
12
21
19
32
10
2
17
2
7
25
30
4
23
15
16
11
13
28
10.206.ag

Артикул

Название

Примечание

Количество

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

OAL 14.9 FT

1шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

3шт.

7

47710480

Tank Support

BRACKET

1шт.

8

47739852

Chassis Mounted Fuel Filter

BRACKET

1шт.

9

47747587

SENDER UNIT

Fuel

1шт.

10

47800557

BRACKET

Fuel Line Support

1шт.

11

47800661

ECU Mounting

BRACKET

1шт.

12

47805509

Fuel Filter Bundle, Incl 31, 32

HOSE

1шт.

13

84259663

CABLE TIE,228.6mm L, Nylon, Black

5шт.

14

84338049

MOUNTING PLATE

Sender Unit Retaining

1шт.

15

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

16

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

17

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap Locking

1шт.

18

84370069

Fuel Cap

CHAIN

1шт.

19

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

2шт.

20

84599867

Assy

FUEL TANK

1шт.

21

84602030

PAD

Foam

2шт.

22

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

23

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

24

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

25

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

26

87037711

SPRING NUT,U, Multi-Thd Sht, M8 x 1.25, PLN

2шт.

27

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

1шт.

28

87436932

CLAMP,13.9mm - 15.5mm, Spring

9шт.

29

87702286

OAL 80mm

TRIM,Bulk, 1/8" x 30480mm L

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

31

47735686

OAL 490mm, W/ 90° Fitting

FUEL HOSE,8mm ID x 490mm L, SAE 30R9

1шт.

32

47735688

OAL 653mm

FUEL HOSE,7.94mm ID x 653mm L, SAE 30R9

1шт.

Выбрано товаров: 32
