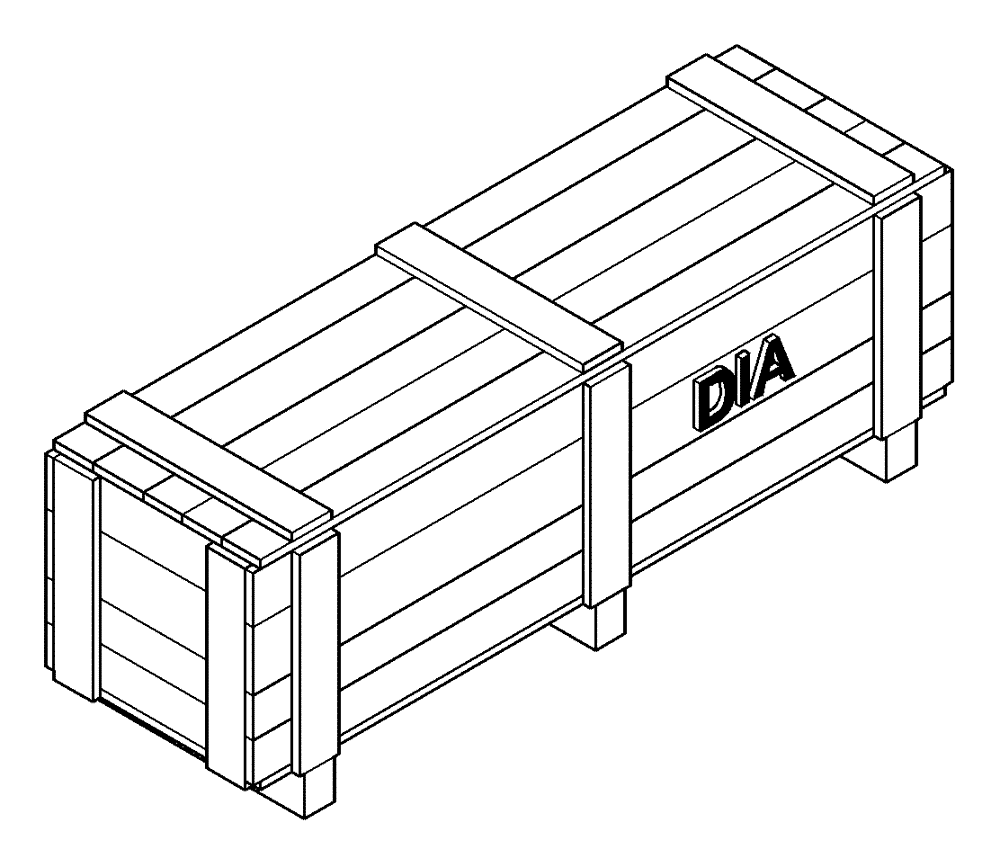

Запчасти Case IH TR270 (88.100.35[05]) - DIA KIT, HIGH FLOW AUXILIRAY, RADIAL BOOM (88) - ACCESSORIES

1

84602578

High Flow, Radial Boom, Incl 2 - 50

SERVICE KIT

1шт.

2

84602579

Sheet, High Flow

INSTRUCTION

1шт.

3

84256405

HYDRAULIC VALVE

HF Combiner

1шт.

4

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

6

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

8

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

11

84186146

HF Valve To Loader Valve

TUBE,12.7mm OD

1шт.

12

84186142

Loader Valve To Left Arm

TUBE

1шт.

13

84186144

Loader Valve To Left Arm

TUBE

1шт.

14

84362112

Hydraulic Tube

SUPPORT

2шт.

15

D124301

CLAMP,3/4" ID

3/4"

2шт.

16

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

17

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

18

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

84251427

SWITCH

High Flow, Rocker

1шт.

21

84373460

PLUG,23.8mm OD

Load Check

1шт.

22

84259689

Quick Attach High Flow

VALVE

1шт.

23

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

24

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

25

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

26

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

27

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

28

84277076

64.1mm OAL

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

4шт.

29

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

30

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

31

84277083

11.1mm ID

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

32

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

33

84306937

COVER PLATE

Hydraulic, Tan

1шт.

34

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

35

84322573

Highflow Male

HYD TUBE

1шт.

36

84322575

Highflow Male

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

37

84322576

Highflow Female

HYD TUBE

1шт.

38

84322578

Highflow Female

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

39

84338474

Case Drain

HYD TUBE

1шт.

40

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

41

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

42

84602054

HYDRAULIC PUMP

36.3/13.7CC Gear

1шт.

43

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

44

84329005

High Flow Supply

HOSE,15.88mm ID x 594mm L, SAE 100R17

1шт.

45

84385861

Gear Pump Suction

ADAPTER

1шт.

46

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

47

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

48

84387451

Gear Pump Suction

HOSE

1шт.

49

86512952

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1" - 11-1/2 NPTF

1шт.

50

84306939

COVER

Hydraulic, Gray

1шт.
