Запчасти Case IH TR270 (35.525.AA[04]) - AUXILIARY BOOM ARM PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

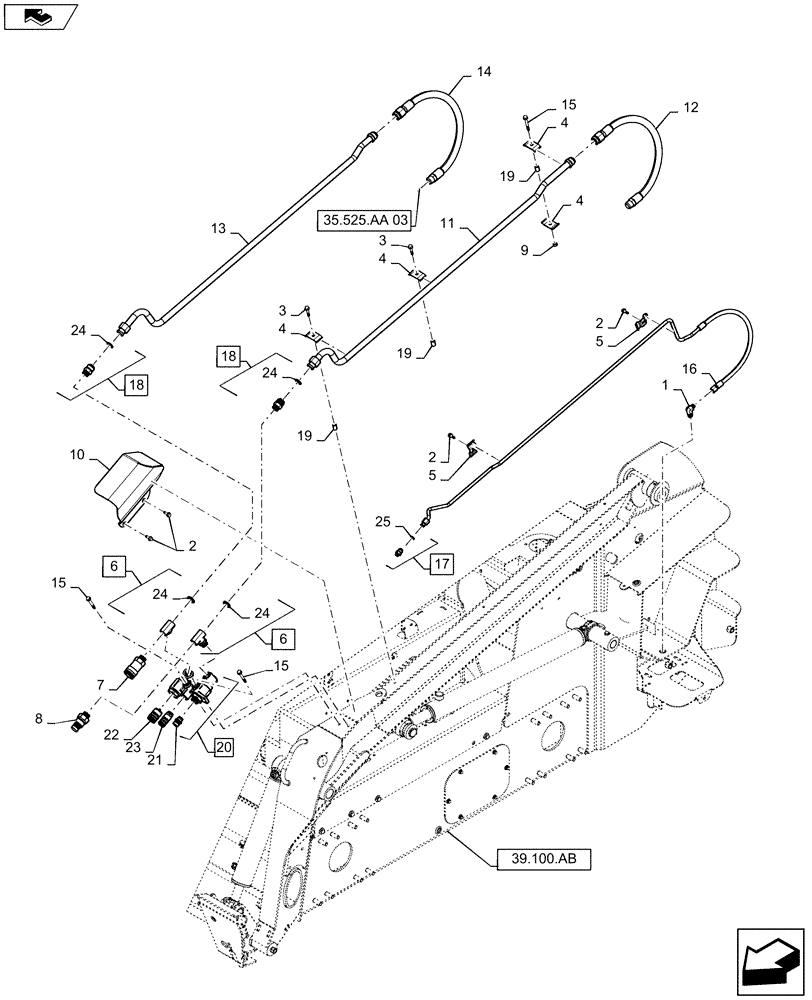

Схема запчастей Case IH TR270 - (35.525.AA[04]) - AUXILIARY BOOM ARM PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS
19
20
15
19
18
5
4
25
18
3
home
10
16
4
35.525.aa 03
23
8
24
4
5
24
12
14
2
24
1
3
7
24
9
11
4
19
6
2
17
6
22
15
21
13
15
39.100.ab
2

Артикул

Название

Примечание

Количество

1

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

4

84277076

Tube

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

4шт.

5

84254056

HOSE CLAMP,69.2mm L

Butterfly

2шт.

6

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 24

2шт.

7

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

1шт.

8

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

1шт.

9

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

10

84306937

COVER PLATE

Couplers

1шт.

11

84322573

High Flow Male

HYD TUBE

1шт.

12

84322575

High Flow Male

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

13

84322576

High Flow Female

HYD TUBE

1шт.

14

84322578

High Flow Female

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

15

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

16

84338474

Case Drain

HYD TUBE

1шт.

17

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 25

1шт.

18

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 24

2шт.

19

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

20

47447054

VALVE

High Flow Connect Under Pressure Manifold, Incl 21 - 23

1шт.

21

47396760

COUPLING,1/2" Male

1шт.

22

47396761

COUPLING,1/2" Female

1шт.

23

47396762

COUPLING,3/8" Female

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 25
