Запчасти Case IH TR270 (35.353.AD[06]) - TRAVEL SPEED, E-H (03-OCT-2016 & NEWER) (35) - HYDRAULIC SYSTEMS

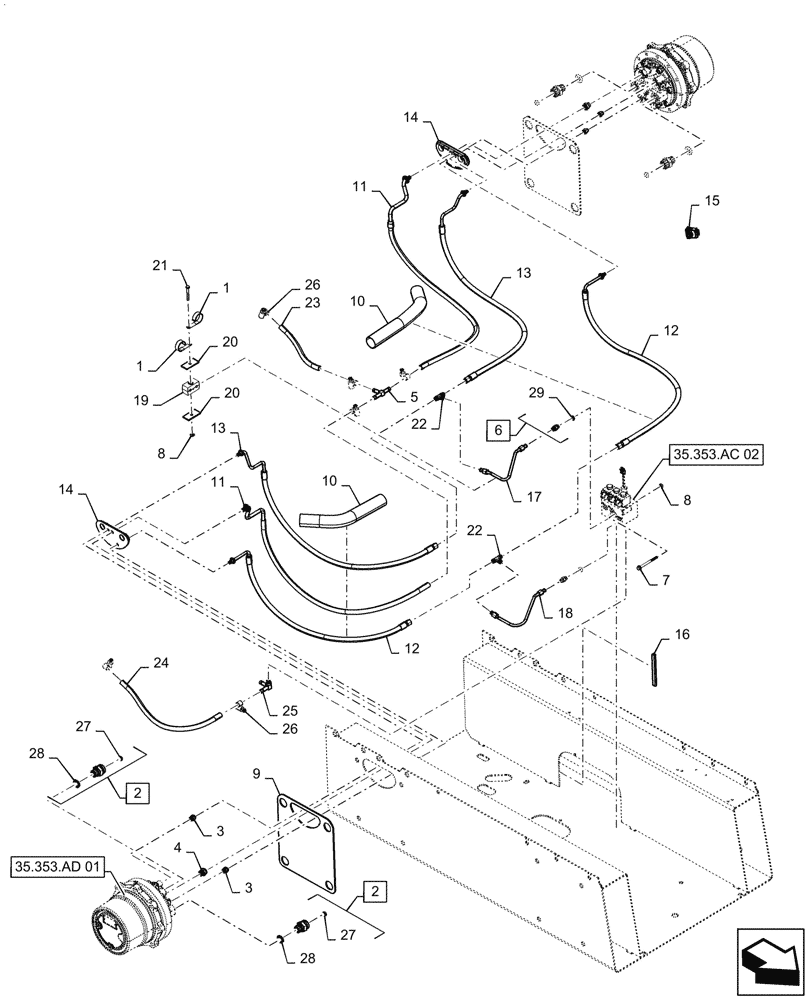

Схема запчастей Case IH TR270 - (35.353.AD[06]) - TRAVEL SPEED, E-H (03-OCT-2016 & NEWER) (35) - HYDRAULIC SYSTEMS
35.353.ac 02
16
12
5
29
15
19
22
4
24
26
14
23
10
3
18
1
8
9
7
8
17
27
12
14
21
2
1
28
11
3
27
11
10
6
20
13
26
22
25
28
13
2
20
35.353.ad 01

Артикул

Название

Примечание

Количество

1

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

2

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 27, 28

4шт.

3

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

4шт.

4

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

2шт.

5

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 29

2шт.

7

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

9

84331874

Grommet, Gray

PLATE

2шт.

10

48008317

HOSE PROTECTION,46mm ID x 457mm L, Woven Nylon

Sleeve

2шт.

11

47977378

Case Drain

HYD TUBE

2шт.

12

47977377

HYDRAULIC HOSE

2-Speed

2шт.

13

47977379

Brake

HYD TUBE

2шт.

14

47893401

GROMMET

Chassis

2шт.

15

84388282

INDICATOR

High Speed

1шт.

16

84353803

TRIM,30.48m Bulk

Cut to Length, 480mm

1шт.

17

47961991

Brake

HYD TUBE

1шт.

18

47961994

2-Speed

HYD TUBE

1шт.

19

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

21

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

22

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

23

47962917

HYDRAULIC HOSE,12.7mm ID x 340mm L

1шт.

24

84257173

HOSE,12.7mm ID x 570mm L

1шт.

25

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

26

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

6шт.

27

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 29
