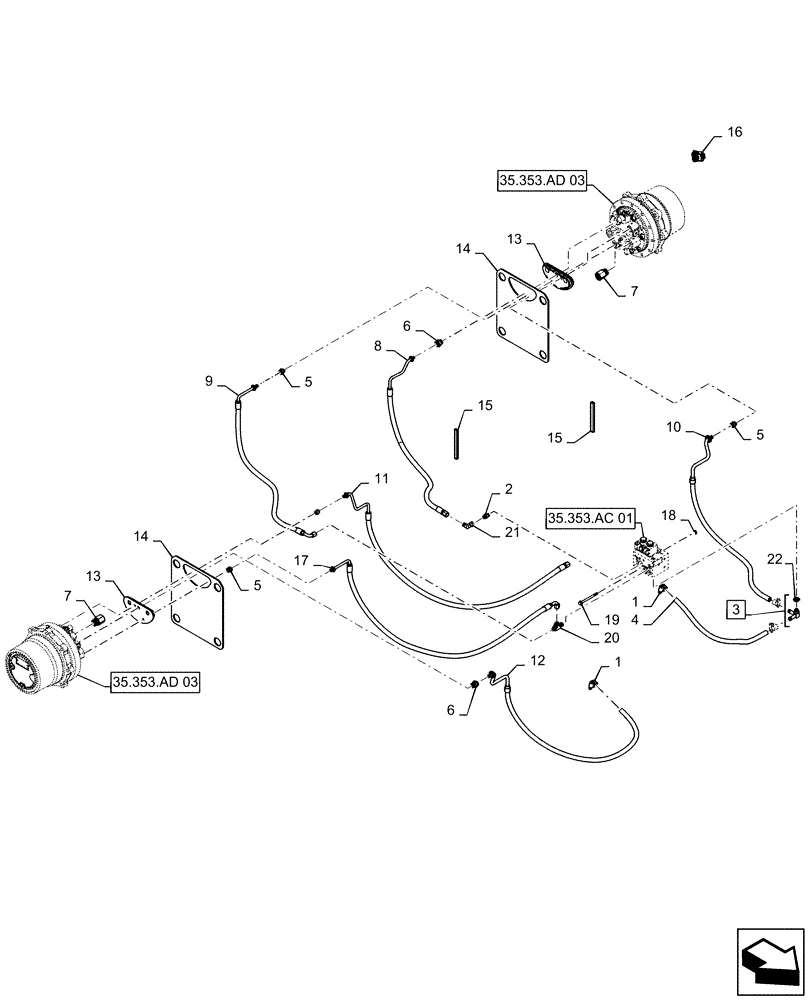

Запчасти Case IH TR270 (35.353.AD[04]) - TRAVEL SPEED, 2 SPEED (02-OCT-2016 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84187294

Incl 22

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

4

84257173

HOSE,12.7mm ID x 570mm L

1шт.

5

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

4шт.

6

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

2шт.

7

84277066

Female, HP Quick Lok, Years: -05-JAN-16

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

4шт.

7

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 06-JAN-16

4шт.

8

84277069

Brake, LH

BRAKE LINE

1шт.

9

84277074

2-Speed, LH

FLEXIBLE HOSE,9.53mm ID x 1000mm L, SAE 100R1

1шт.

10

84280492

Case Drain, LH

HYD TUBE

1шт.

11

84280495

Brake, RH

RIGID TUBE

1шт.

12

84280498

Case Drain, RH

HYD TUBE

1шт.

13

84331670

Chassis, Years: -05-JAN-16

GROMMET

2шт.

13

47893401

GROMMET

Chassis, Start Year: 06-JAN-16

2шт.

14

84331874

Grommet, Gray

PLATE

2шт.

15

84353803

TRIM,30.48m Bulk

480mm, Edge

1шт.

16

84388282

INDICATOR

High Speed

1шт.

17

84412426

FLEXIBLE HOSE,9.53mm ID x 1270mm L, SAE 100R17

2-Speed, RH

1шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

19

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

20

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

21

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
