Запчасти Case IH TR270 (35.353.AD[03]) - 2 SPEED DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

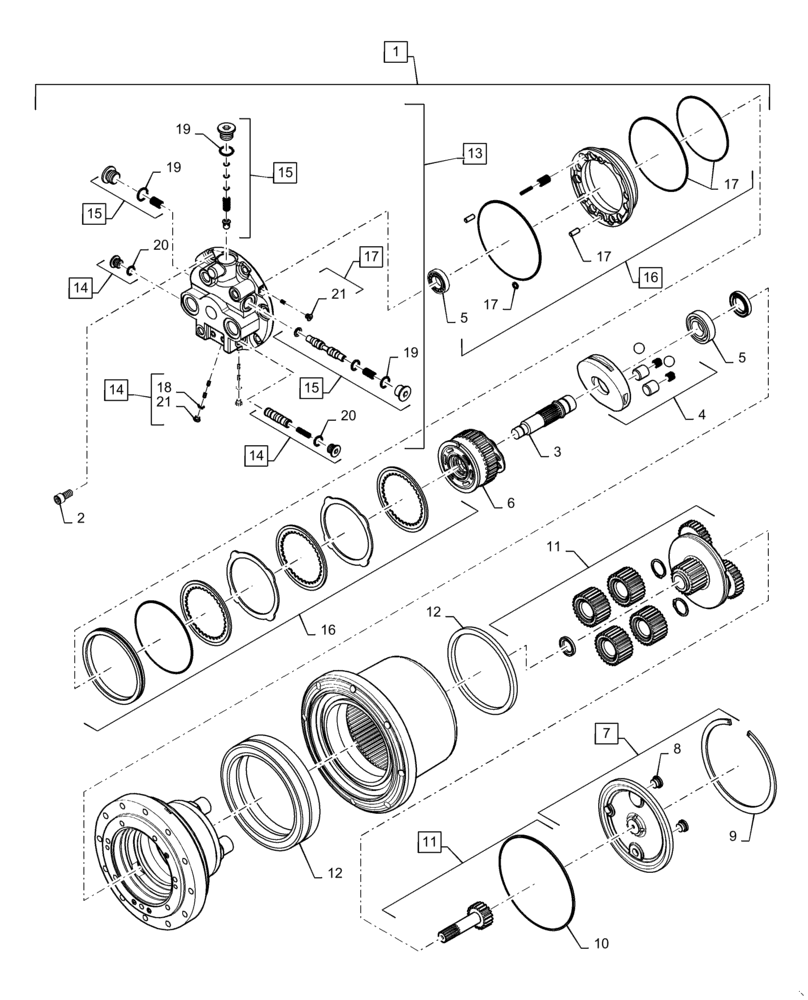

Схема запчастей Case IH TR270 - (35.353.AD[03]) - 2 SPEED DRIVE MOTOR (35) - HYDRAULIC SYSTEMS
6
20
19
16
16
9
17
18
21
15
14
11
1
11
13
17
3
10
14
2
15
5
12
19
7
17
20
15
12
19
5
8
21
14
17
4

Артикул

Название

Примечание

Количество

1

87588897

MOTOR-PUMP,50.9 CC

2-Speed, Track Drive, Incl 2 - 21

1шт.

1

87588897R

2-Speed, Track Drive

REMAN-HYD MOTOR

1шт.

1

87588897C

2-Speed, Track Drive, Return Number

CORE-MOTOR HYDRAULIC

1шт.

2

87619899

SCREW,Hex Skt, M12 x 1.75 x 35mm, Cl 12.9

1шт.

3

87619917

SHAFT

Drive Motor

1шт.

4

87619916

SERVICE KIT

Swash Plate, Components are NSS

1шт.

5

87619918

SERVICE KIT

Bearings, Components are NSS

1шт.

6

87619915

SERVICE KIT

Cylinder Block Assembly, Components are NSS

1шт.

7

87619883

SERVICE KIT

Cover Assembly, Incl 8 - 10

1шт.

8

87619884

PLUG,3/8"

Incl in 7, 17

2шт.

9

87619885

CIRCLIP

Uni 7437-190

1шт.

10

87619896

RING,Quad, 190.10mm OD x 3.53mm Thk

Incl in 7, 11 - 12, 17

1шт.

11

87619900

SERVICE KIT

Reduction Assembly, Incl 10

1шт.

12

87619901

SPECIAL NUT

Seal, Incl 10

1шт.

13

87619902

SERVICE KIT

Base Plate Assembly, Incl 14 - 15, 17

1шт.

14

87619905

SERVICE KIT

Second Speed Spool, Incl 18, 20 - 21

1шт.

15

87619914

SERVICE KIT

Flushing, Incl 19

1шт.

16

87619919

SERVICE KIT

Park Brake

1шт.

17

87619920

SERVICE KIT

Seal Repair, Incl 8, 10, 18 - 21

1шт.

18

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

3шт.

19

272142

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

3шт.

20

229317

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

21

86632547

PLUG,Hex, 5/16"-24 ORB

3шт.

Выбрано товаров: 23
