(35.353.AC[02]) - BRAKE VALVE, E-H CONTROLS

Запчасти Case IH TR270 (35.353.AC[02]) - BRAKE VALVE, E-H CONTROLS (35) - HYDRAULIC SYSTEMS

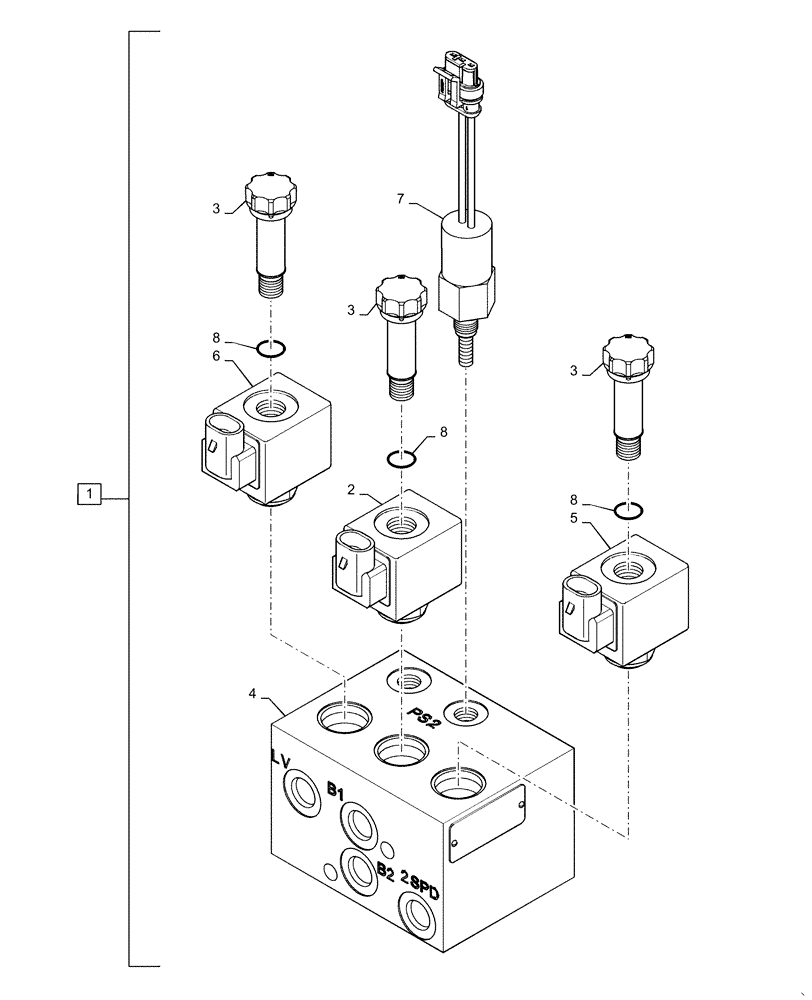

Схема запчастей Case IH TR270 - (35.353.AC[02]) - BRAKE VALVE, E-H CONTROLS (35) - HYDRAULIC SYSTEMS
4
5
1
3
8
8
8
3
2
6
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84597129

HYDRAULIC VALVE

Brake, E-H Controls, Incl 2 - 8

1шт.

2

84390141

COIL

Brake

1шт.

3

84311808

HYDRAULIC VALVE

Spool, Brake, Interlock, 2-Speed

3шт.

4

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

5

84390142

COIL

2-Speed

1шт.

6

84390140

COIL

Interlock

1шт.

7

84311814

PRESSURE SWITCH

Brake

1шт.

8

84311809

Brake, Interlock, 2-Speed Spool

SEAL KIT

3шт.
