Запчасти Case IH TR270 (29.204.AB[04]) - HYDROSTATIC PUMP, SUPPLY LINES, E-H CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

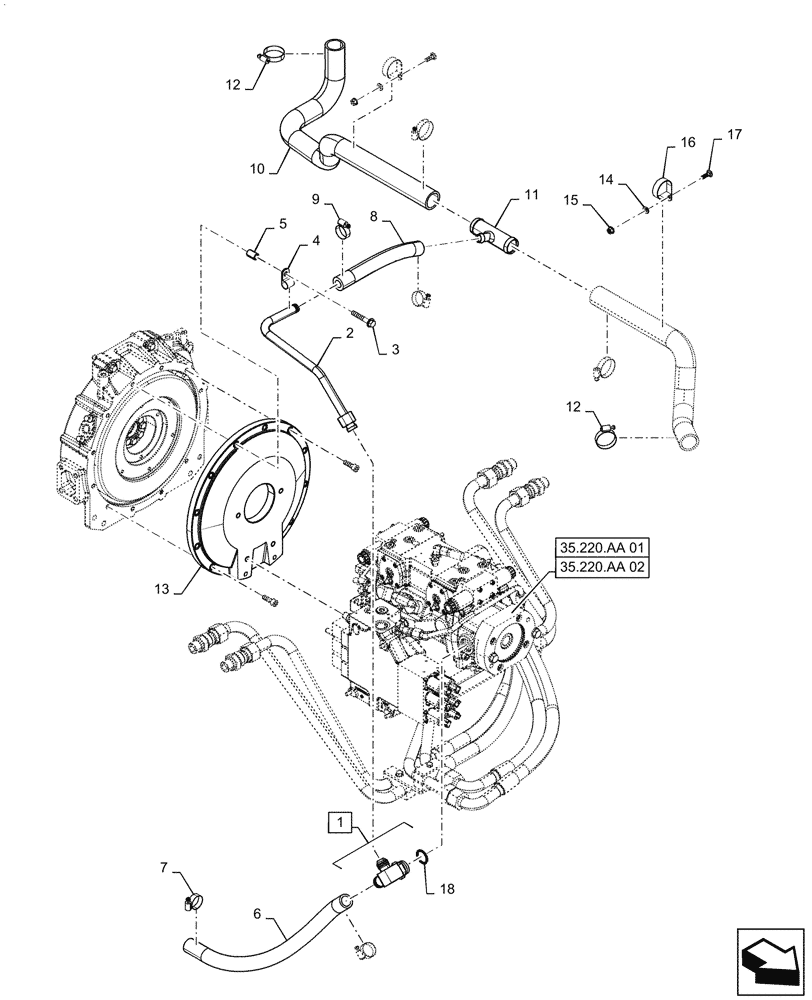

Схема запчастей Case IH TR270 - (29.204.AB[04]) - HYDROSTATIC PUMP, SUPPLY LINES, E-H CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE
35.220.aa 02
13
12
15
9
12
4
2
1
14
5
10
8
3
7
11
6
17
16
18
35.220.aa 01

Артикул

Название

Примечание

Количество

1

84344924

Incl. 18

90 ELBOW,1-5/16" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

1шт.

2

47821056

HYD TUBE

1шт.

3

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

3шт.

4

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

6

84349307

HOSE,25.4mm ID x 530mm L, SAE 100R4

1шт.

7

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

8

84344942

HOSE,19.05mm OD x 280mm L

1шт.

9

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

10

47612618

Assy, Gear Pump Suction

HOSE,38.1mm ID

1шт.

11

47788716

TEE,3/4" Hose Barb x 1-1/2" Hose Barb x 1-1/2" Hose Barb

1шт.

12

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

13

47659227

COVER

Flywheel

1шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

16

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

17

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
