Запчасти Case IH TR270 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

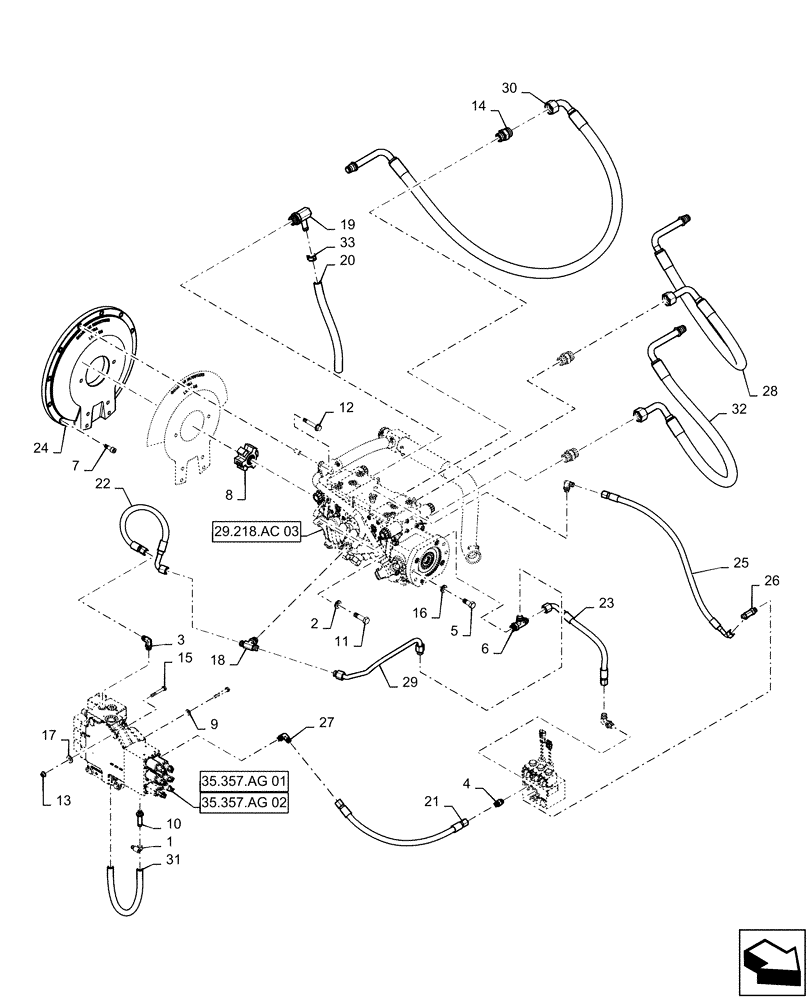

Схема запчастей Case IH TR270 - (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE
31
29
12
32
5
24
25
29.218.ac 03
14
27
15
11
17
28
35.357.ag 01
19
30
8
22
3
1
10
2
6
4
21
20
16
35.357.ag 02
18
33
7
13
23
9
26

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

5

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

8

87711337

COUPLING,19T, 1-1/8" ID

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

10

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

11

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

12

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

14

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

15

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

16

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

17

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

18

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

20

84273646

Pump Drain EH

HOSE,15.88mm ID x 304.8mm L

1шт.

21

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control To Brake

1шт.

22

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH Valve Interlock

1шт.

23

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

EH Brake Charge

1шт.

24

84305548

Cover

COVER

1шт.

25

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake

1шт.

26

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

28

84560838

FLEXIBLE HOSE,19.05mm ID x 940mm L, SAE 100R19

Loop

1шт.

29

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

30

84560831

FLEXIBLE HOSE,19.05mm ID x 1445mm L, SAE 100R19

Loop

2шт.

31

84373394

EH AUX To EH AUX Drain

HOSE,12.7mm ID x 410mm L

1шт.

32

84560830

FLEXIBLE HOSE,19.05mm ID x 940mm L, SAE 100R19

Loop

1шт.

33

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

Выбрано товаров: 33
