(55.512.CL[15]) - LEVEL 250 HANDLE GRIP, E-H CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL

Запчасти Case IH TR270 (55.512.CL[15]) - LEVEL 250 HANDLE GRIP, E-H CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

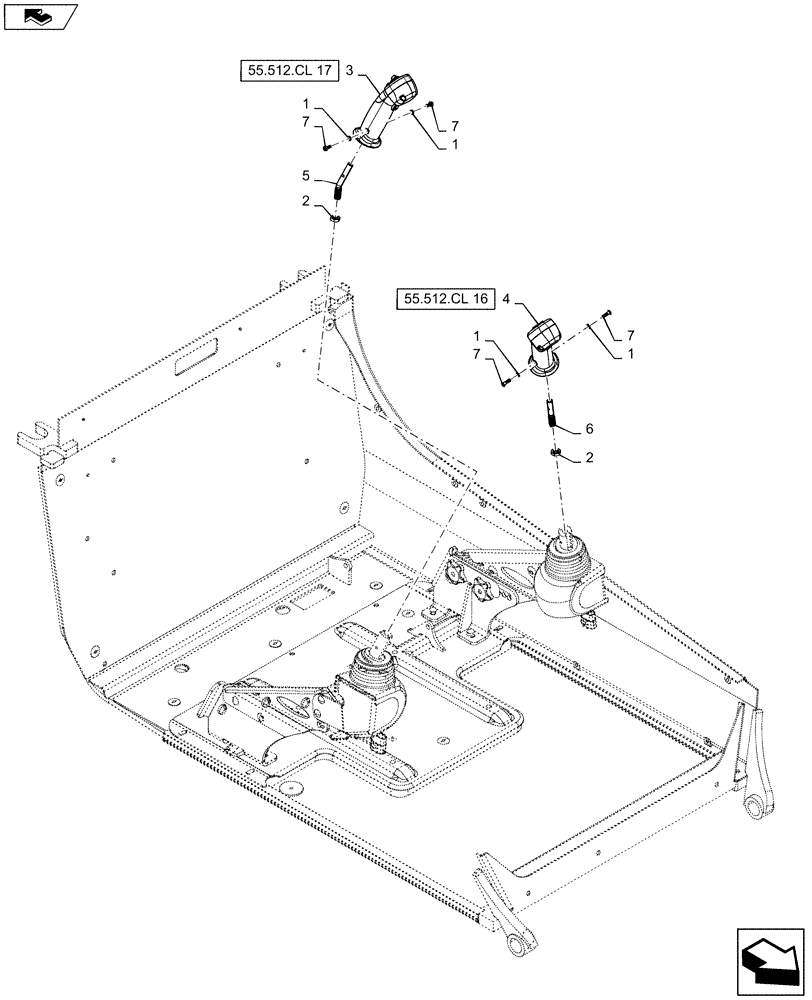

Схема запчастей Case IH TR270 - (55.512.CL[15]) - LEVEL 250 HANDLE GRIP, E-H CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS
55.512.cl 17
7
7
2
1
3
4
1
1
2
5
1
6
7
7
55.512.cl 16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201284

RH, Level 250, Proportional Hydraulics, Ride Control

HANDLE GRIP

1шт.

4

84280479

LH, Level 250, Horn, 2 Speed, Turn Signal

HANDLE GRIP

1шт.

5

87619016

ROD

Angled, RH Grip

1шт.

6

87619017

Angled, LH Grip

ROD

1шт.

7

87742597

HEX SOC SCREW,Locking, #10 - 32 x 5/8"

4шт.
