(55.512.CL[11]) - LEVEL 300 HANDLE GRIP, 2-SPEED MECHANICAL CONTROLS, W/ MULTI-FUNCTION ELECTRICAL CONTROL

Запчасти Case IH TR270 (55.512.CL[11]) - LEVEL 300 HANDLE GRIP, 2-SPEED MECHANICAL CONTROLS, W/ MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

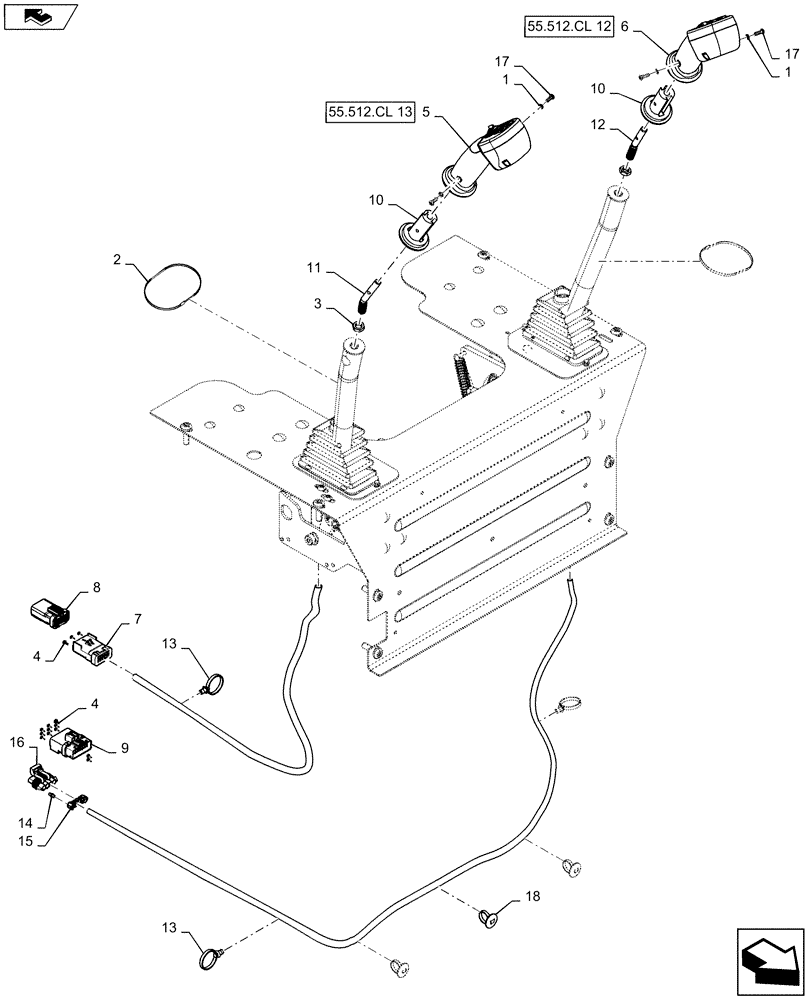

Схема запчастей Case IH TR270 - (55.512.CL[11]) - LEVEL 300 HANDLE GRIP, 2-SPEED MECHANICAL CONTROLS, W/ MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS
55.512.cl 12
16
7
4
1
6
13
2
5
17
14
8
10
12
17
1
18
10
11
13
9
3
15
4
55.512.cl 13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

3

9706685

NUT,M12 x 1.75, Cl 8

2шт.

4

84279937

PLUG,Apex, 2.80mm

15шт.

5

84396071

LH, Level 300, Horn, 2 Speed, Turn Signal, 2 Multifunction Switches

HANDLE

1шт.

6

84396079

RH, Level 300, Proportional Hydraulics, Ride Control, 2 Multifunction Switches

HANDLE

1шт.

7

87382923

ELEC CONNECTOR,Male, 10 Cavities

Used On RH Grip

1шт.

8

87382925

WIRE CONNECTOR,Female, 10 Cavities

Used On RH Grip

1шт.

9

87382927

ELEC CONNECTOR,Male, 14 Cavities

Used On LH Grip

1шт.

10

87527964

ADAPTER

Handle, Pilot Controls

2шт.

11

87619016

ROD

Angled, RH Grip

1шт.

12

87619017

Angled, LH Grip

ROD

1шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

14

87689636

PLUG,Red, Taxi Seal Connector Cavity

Used On LH Grip

1шт.

15

87689643

CLIP,4.8mm ID

Wedge, Used On LH Grip

1шт.

16

87697724

ELEC CONNECTOR,Female, 4 Cavities

Used On LH Grip

1шт.

17

87742597

HEX SOC SCREW,Locking, #10 - 32 x 5/8"

4шт.

18

378884A2

STRAP,254mm L

Nylon

3шт.
