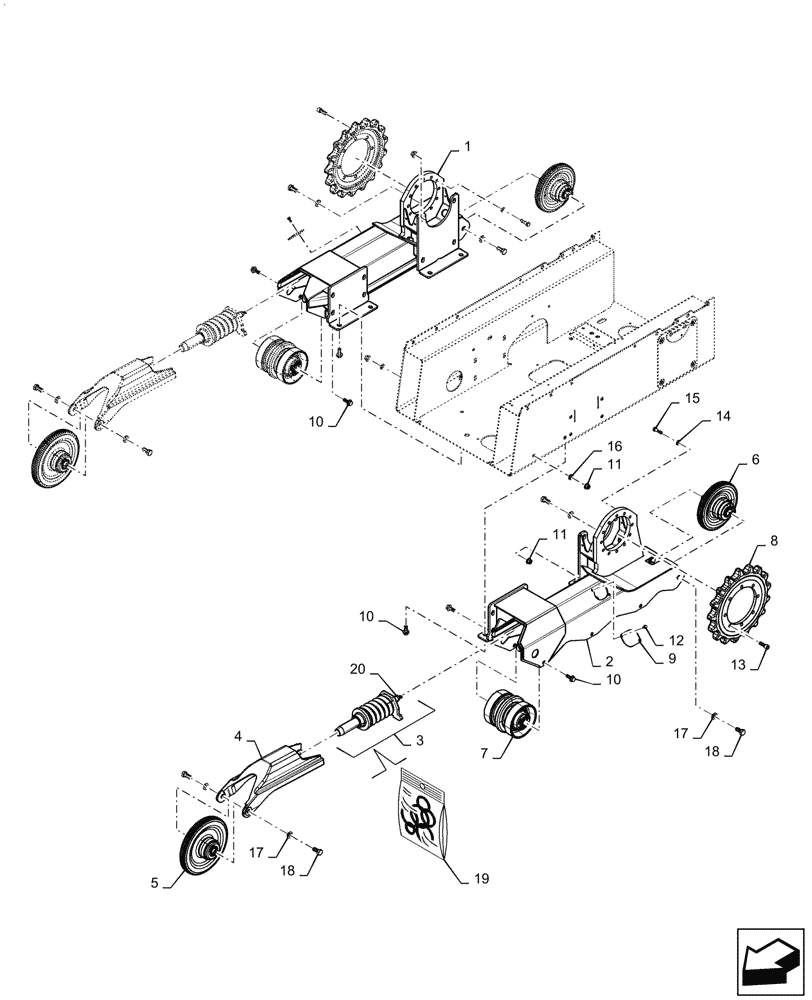

Запчасти Case IH TR270 (48.130.AN) - TRACK ASSY (20-NOV-2015 & NEWER) (48) - TRACKS & TRACK SUSPENSION

1

47720066

RH, Gray

FRAME

1шт.

2

47720072

LH, Gray

FRAME

1шт.

3

47620837

TENSIONER

Spring

2шт.

4

47630196

YOKE

Front Idler

2шт.

5

47620836

IDLER

Front

2шт.

6

47378988

IDLER,290mm OD

Rear

2шт.

7

47378992

TRACK ROLLER,214mm OD x 228.3mm L

6шт.

8

47378993

SPROCKET,17T

2шт.

9

47630237

PLATE

Cover

2шт.

10

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

20шт.

11

86512498

FLANGE NUT,M16 x 2, Cl 10

20шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

16шт.

14

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

15

87316174

BOLT,Hex, M14 x 50mm, Cl 10.9

24шт.

16

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

17

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

18

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

8шт.

19

47428174

SEAL KIT

Services 3

2шт.

20

47896347

SERVICE KIT

Valve, Services 3

2шт.
