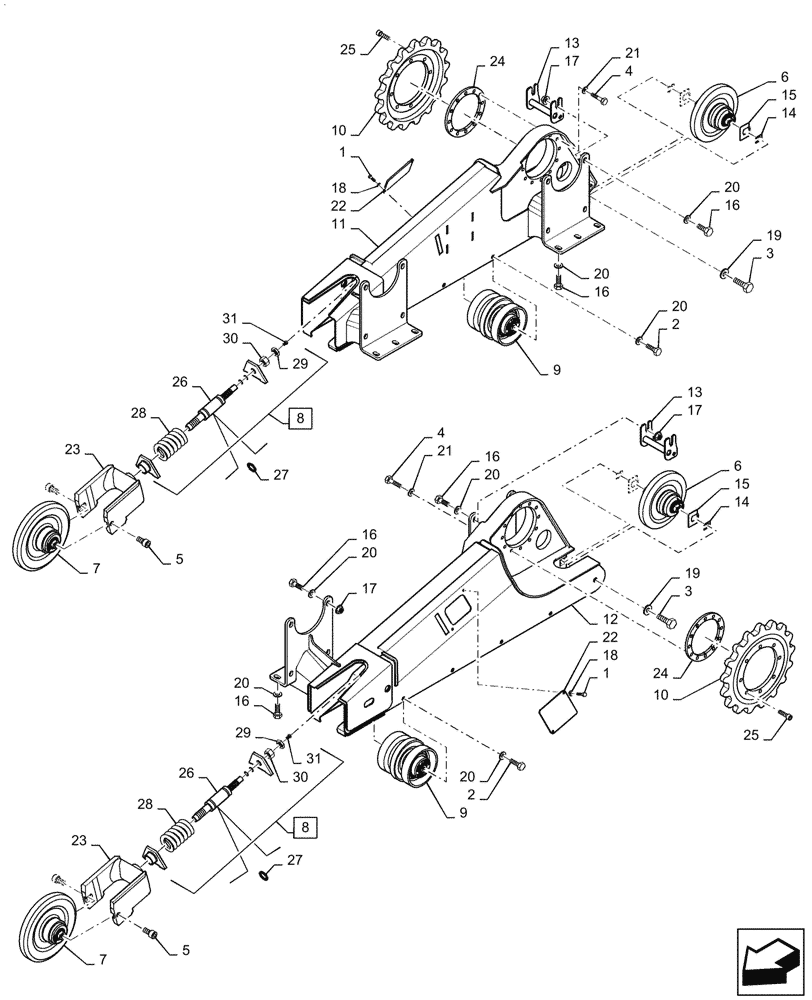

Запчасти Case IH TR270 (48.138.AB) - UNDERCARRIAGE (TR270) (48) - TRACKS & TRACK SUSPENSION

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

12шт.

3

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

4

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

24шт.

5

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

6

87480413

IDLER,290mm OD x 220mm W

Rear

2шт.

7

87480418

FRONT IDLER,350mm OD x 194mm W

2шт.

7

47378990R

REMAN-WHEEL IDLER

2шт.

7

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

8

87602985

TENSIONER

Cylinder Spring Tensioner

2шт.

9

87480419

TRACK ROLLER

6шт.

10

87460888

SPROCKET

17 Tooth

2шт.

11

47584238

RH

FRAME

1шт.

12

84268603

RH, CE Gray

FRAME

1шт.

12

84268606

LH, CE Gray

FRAME

1шт.

13

84465589

Track Strut

BRACKET

2шт.

14

84491877

Track Idler

SHIM,31mm OD x 1.7mm Thk

4шт.

15

84491878

Track Idler, Retainer

RETAINER

4шт.

16

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

20

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

24шт.

21

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

22

87354210

COVER

Plate

2шт.

23

87462287

YOKE

Front Idler

2шт.

24

87583105

SPACER,214mm ID x 280mm OD x 13.25mm Thk

Motor

2шт.

25

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

16шт.

26

47428172

410mm L

PISTON

2шт.

27

47428174

SEAL KIT

Services 8

2шт.

28

47431257

7 coils

TENSION SPRING

2шт.

29

47432815

JAM NUT,Hex, M36 x 3, Cl 4

2шт.

30

47432628

NUT,Hex, M36 x 3mm Pitch, CL 8

2шт.

31

79043802

FITTING,Zerk, M18 x 1.5

Zerk

2шт.
