Запчасти Case IH TR270 (29.204.AB[04]) - HYDROSTATIC PUMP, DRIVE, LINE, EH CONTROLS (23-MAR-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

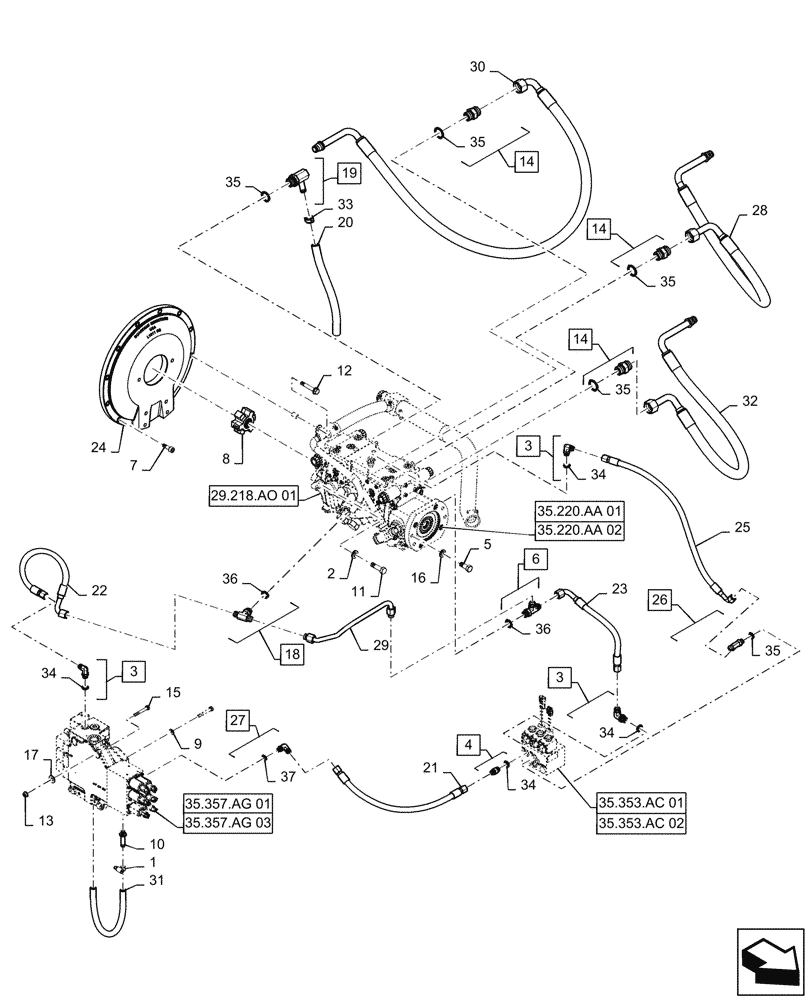

Схема запчастей Case IH TR270 - (29.204.AB[04]) - HYDROSTATIC PUMP, DRIVE, LINE, EH CONTROLS (23-MAR-2015 & PRIOR) (29) - HYDROSTATIC DRIVE
35.357.ag 01
20
33
34
17
35
34
37
21
13
2
14
35
4
11
3
35
10
23
16
22
14
8
35.357.ag 03
3
35.220.aa 02
14
29
35.353.ac 02
30
35
18
19
9
25
31
5
15
36
26
3
7
12
35
28
34
34
24
36
32
27
1
6
29.218.ao 01
35.353.ac 01
35.220.aa 01

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 34

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 34

1шт.

5

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 36

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

8

87711337

COUPLING,19T, 1-1/8" ID

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

10

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

11

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

12

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

14

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 35

4шт.

15

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

16

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

17

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

18

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 36

1шт.

19

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 35

1шт.

20

84273646

Pump Drain EH

HOSE,15.88mm ID x 304.8mm L

1шт.

21

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control To Brake

1шт.

22

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH Valve Interlock

1шт.

23

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

EH Brake Charge

1шт.

24

47659227

COVER

Flywheel

1шт.

25

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake

1шт.

26

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 35

1шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 37

1шт.

28

84560838

FLEXIBLE HOSE,19.05mm ID x 940mm L, SAE 100R19

Loop

1шт.

29

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

30

84560831

FLEXIBLE HOSE,19.05mm ID x 1445mm L, SAE 100R19

Loop

2шт.

31

84373394

EH AUX To EH AUX Drain

HOSE,12.7mm ID x 410mm L

1шт.

32

84560830

FLEXIBLE HOSE,19.05mm ID x 940mm L, SAE 100R19

Loop

1шт.

33

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 3, 4

4шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 14, 19, 25

6шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 6, 18

2шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 27

1шт.

Выбрано товаров: 37
