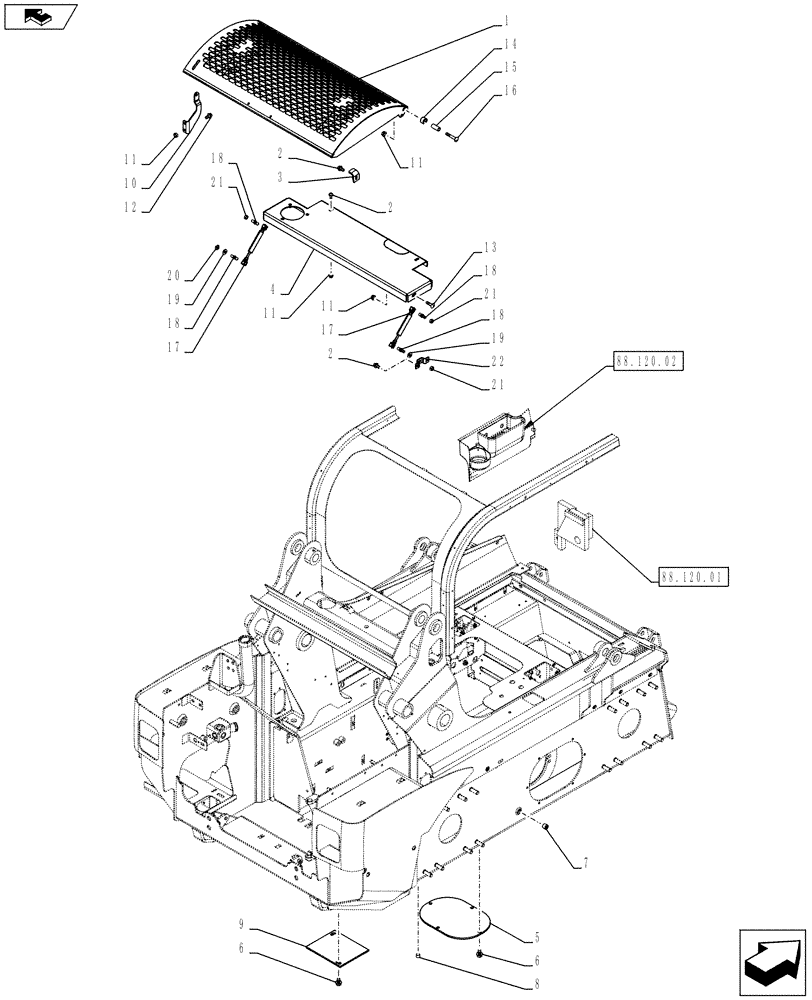

Запчасти Case IH TR270 (90.100.AU) - HOODS AND COVERS (TR270) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84371087

Tilt Gray

HOOD

1шт.

2

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

6шт.

3

84420534

Hood Stop

STOP

2шт.

4

84201355

Panel, W Rear Deck Gray

PANEL

1шт.

5

84299800

Gray

COVER PLATE

1шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

6шт.

7

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe

2шт.

8

236622

PLUG,3/8" - 18 NPT

Pipe

2шт.

9

84299809

Plumbing Access

COVER PLATE

1шт.

10

84313073

Angle, Hood Lock Tab Tan

LOCKING TAB

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

87429698

SPACER

Hood

2шт.

15

259905A1

SPACER

2шт.

16

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

17

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Spring Cylinder... Hood Assist

2шт.

18

189609A1

BALL STUD,M8 x 1.25

4шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

21

43362

NUT,M8 x 1.25, Cl 10

3шт.

22

84356838

Strut Mounting

MOUNTING PLATE

1шт.

23

406256A1

HANDLE

Rear Hood (Not Shown)

1шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

(Not Shown)

2шт.

25

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

(Not Shown)

2шт.

26

86625264

LOCK WASHER,Ext Tooth, M5

(Not Shown)

2шт.
