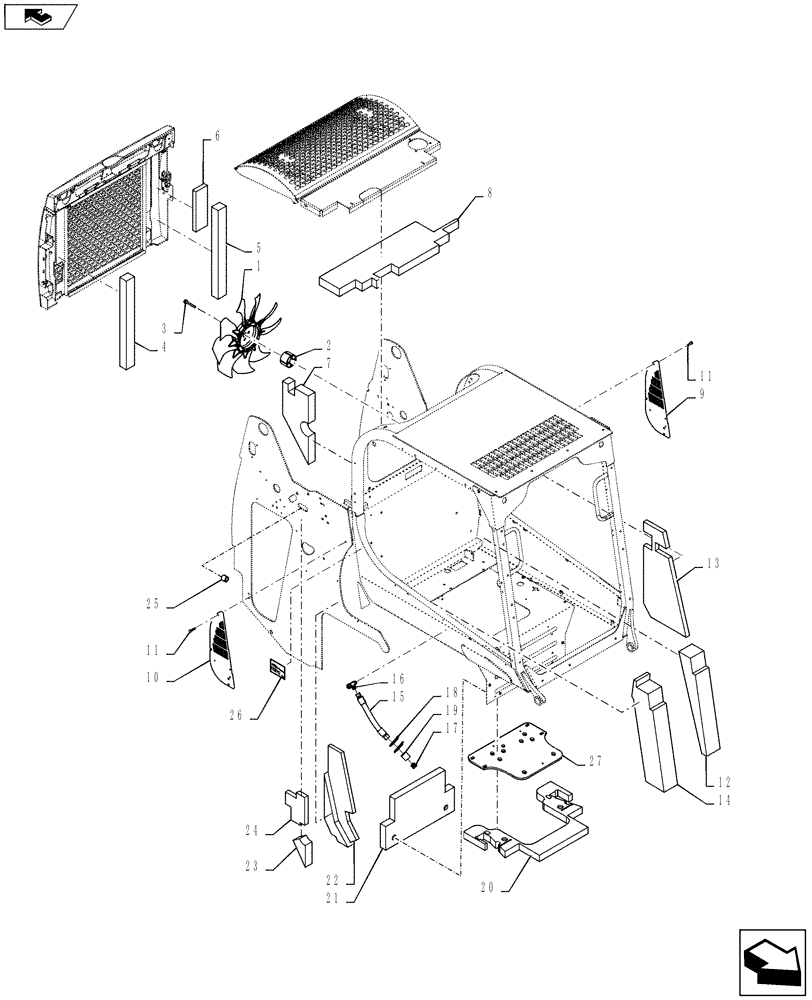

Запчасти Case IH TR270 (88.100.10[22]) - ENGINE ACCESSORIES EU/OPEN EU W/SOUND (TR270) (88) - ACCESSORIES

1

47488899

Clockwise Pusher 480 (EURO)

FAN,9 Blades, 480mm OD

1шт.

2

84373345

Fan, Chart

SPACER

1шт.

3

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

4

84374184

Rear Door RH

FOAM INSULATION

1шт.

5

84374183

Rear Door LH

FOAM INSULATION

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

7

84374180

Tower LH

FOAM INSULATION

1шт.

8

84374182

Hood

FOAM INSULATION

1шт.

9

84383823

Chassis Vent LH

COVER

1шт.

10

84383826

Chassis Vent RH

COVER

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

12

84366338

Left Tower Front

FOAM INSULATION

1шт.

13

84374181

Tower LH Front

FOAM INSULATION

1шт.

14

84374169

Right Tower Front

FOAM INSULATION

1шт.

15

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

16

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Tee 3/4 Tube 1-1/16-12

1шт.

17

9790527

PLUG,1-5/16" - 12 JIC

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tie

2шт.

19

87595771

Rubber

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

20

84366352

Heal Plate Vertical

FOAM INSULATION

1шт.

21

84366353

Heal Plate Horizontal

FOAM INSULATION

1шт.

22

84374171

Tower RH

FOAM INSULATION

1шт.

23

84374179

Tower RH Lower

FOAM INSULATION

1шт.

24

84374178

Tower RH Rear

FOAM INSULATION

1шт.

25

87461957

STOP

Stop

1шт.

26

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

27

84372040

FOAM

Seat Pan; Used Only with Open Cab

1шт.

28

84471443

Valve Supply, Not Illustrated

HOSE ASSY.,19.05mm ID x 755mm L, SAE 100R17

1шт.
