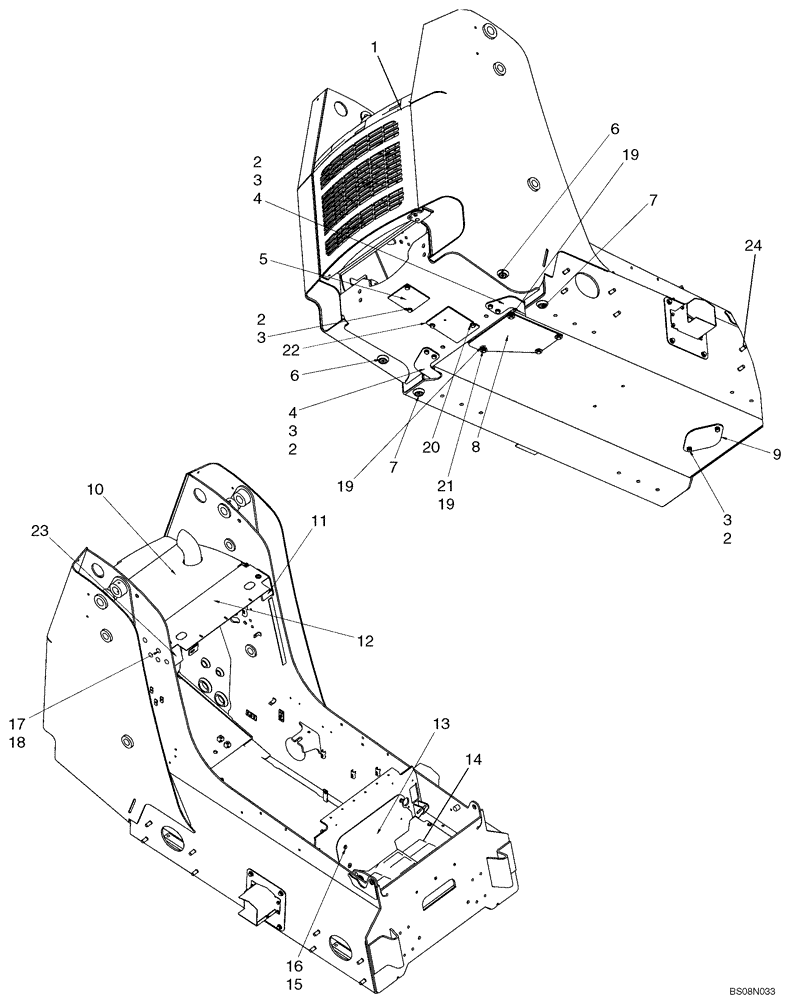

Запчасти Case IH 450CT (09-13) - CHASSIS (450CT) (09) - CHASSIS

1

REF

INSTRUCTION

Rear Door; See Fig 09-21

1шт.

2

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

12шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

4

189422A1

COVER

Rear Chain Tank Cover

2шт.

5

H436914

LARGE PLATE

PLATE, LARGE

1шт.

6

87432221

PLUG

Magnetic Plug

2шт.

7

86625135

PLUG,1" - 11-1/2 NPT

2шт.

8

87458100

PLATE

Cover Plate

1шт.

9

247609A1

COVER

Cover Plate

1шт.

10

REF

INSTRUCTION

Rear Hood; See Fig 09-22

1шт.

11

87665572

BRACKET

Rear Mount, LH

1шт.

12

87661311

PLATE

Plate, ROPS Filler; If Used

1шт.

12

87473799

PANEL

1шт.

13

87715353

COVER

Heel Plate Cover; Replaces 87662605

1шт.

14

87712693

PLATE

Floor Plate

1шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

17

43436

FLANGE NUT,M12

10шт.

18

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

19

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

20

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

21

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

22

87711490

COVER PLATE

1шт.

23

87665570

BRACKET

1шт.

24

254799A1

STUD

M16 x 45; Axle Studs

16шт.
