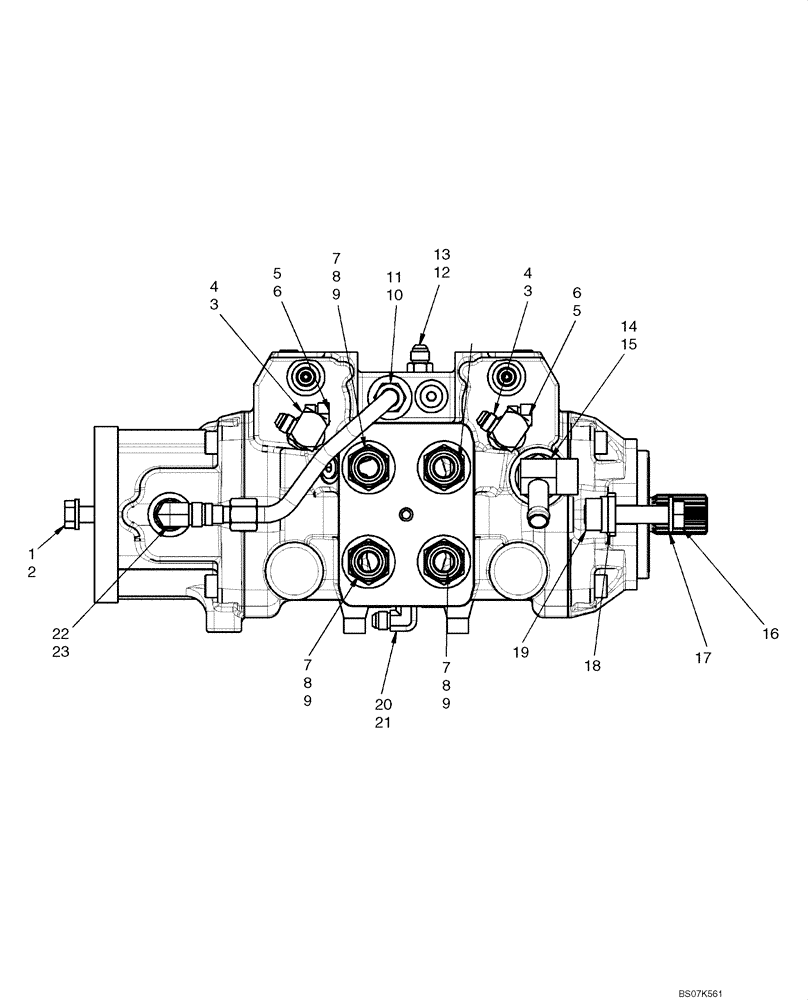

Запчасти Case IH 450CT (06-11) - HYDROSTATICS - PUMP FITTINGS (450CT) (06) - POWER TRAIN

1

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

3

87546979

ADAPTER

Incl 4

2шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. 6

2шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 8, 9

4шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 11; If Used

1шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Connector 37FL X ORB -08; Incl 11

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 13

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87571937

ADAPTER

Incl 15

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

17

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

18

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

Washer, 15.3 X 28.5 X 6mm

4шт.

19

87637186

NUT

2шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 23

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
