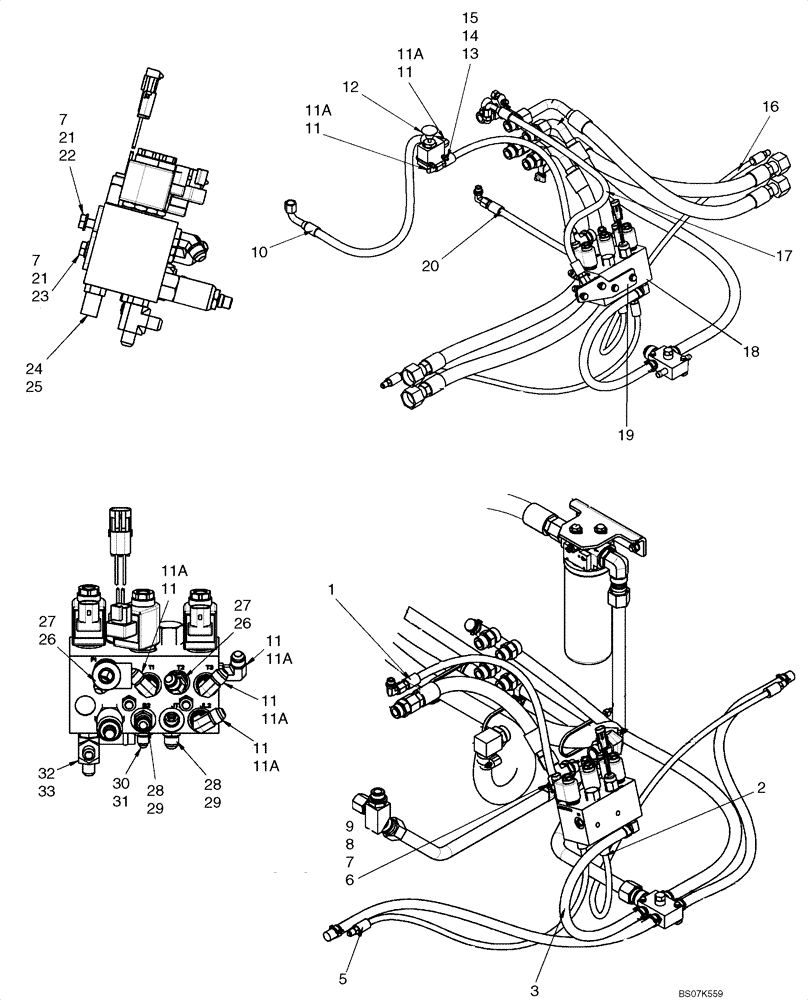

Запчасти Case IH 450CT (06-09) - HYDROSTATICS - MULTI VALVE PLUMBING (450CT) (06) - POWER TRAIN

1

87547033

HOSE,9.65 mm ID x 720.00 mm

Dump Valve Drain

1шт.

2

87452389

HOSE ASSY.

Brake, 1050mm (41 11/32 in.)

1шт.

3

87547047

HOSE,12.7mm ID x 520mm L

Multi Valve Drain

1шт.

4

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

5

87547027

HOSE

Brake RH, 790mm (31 3/32 in.)

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

122158A1

NUT,M8, U

2шт.

10

87547043

HOSE,9.53mm ID x 773mm L

Dump Valve Supply

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 11A

6шт.

11a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

87546973

VALVE

Boom Override Valve; Incl Knob; If Used

1шт.

12

87604076

VALVE, EXHAUST, OVER

Boom Override Valve; Incl Knob

1шт.

13

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

14

86512440

NUT,M6, Cl 10

2шт.

15

86624181

WASHER,M6

2шт.

16

87452386

HOSE ASSY.

Two Speed, 700mm (27 9/16 in.); If Used

1шт.

16

87452387

HOSE ASSY.

Two Speed, 1025mm (40.35in)

1шт.

17

87547040

HOSE

DA Pressure, 706mm (27 13/16 in.)

1шт.

18

87577076

PILOT VALVE

Brake/Two Speed; See Fig 06-19; If Used

1шт.

18

87756437

HYDRAULIC VALVE

Brake/Two Speed; See Fig 06-19A;If Used

1шт.

18

84167643

VALVE

Brake Rel/Two Speed; See Fig 06-19A

1шт.

19

87547006

BRACKET

Valve Mounting Bracket

1шт.

20

87547032

HOSE,9.65 mm ID x 3050.00 mm

Charge Pressure, 467mm (18 3/8 in.)

1шт.

21

9628098

NUT,M8 x 1.25, Cl 10

4шт.

22

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

23

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

24

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 27

2шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 29

2шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 33

1шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
