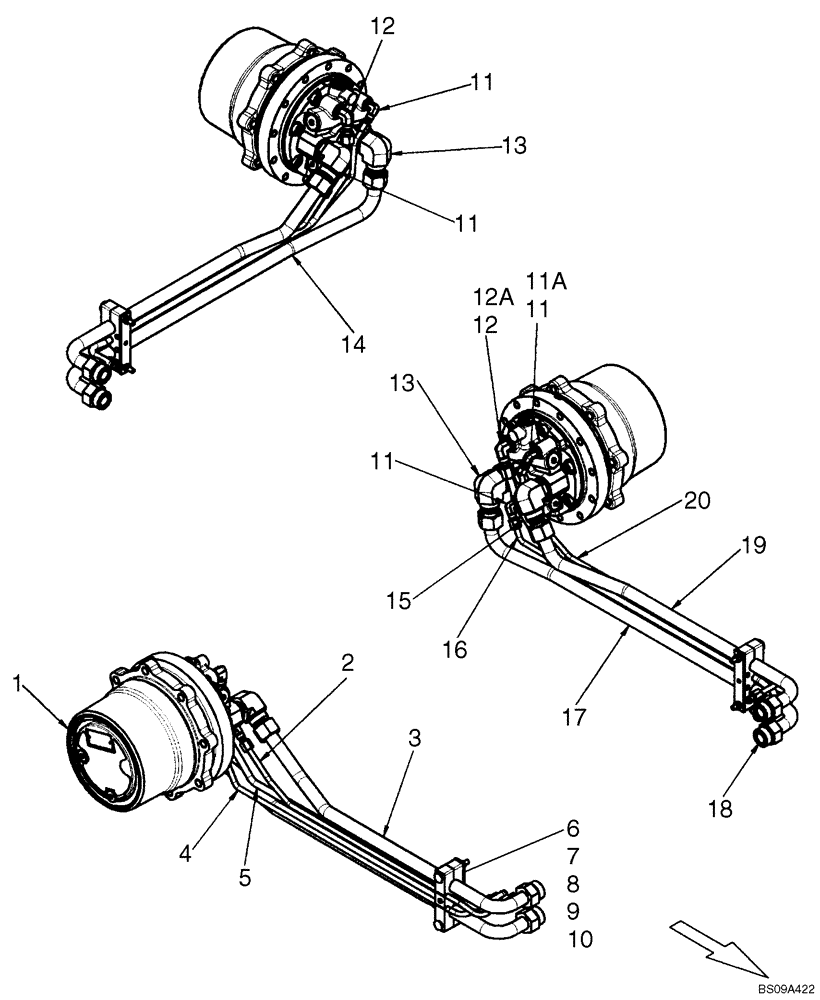

Запчасти Case IH 450CT (06-08A) - HYDROSTATICS - DRIVE MOTORS (450CT) MODELS WITH 87588897; BONFIGLIOLI; ASN N8M485820 (06) - POWER TRAIN

1

87588897

MOTOR-PUMP,50.9 CC

2 Speed Motor, Track Drive; See Fig 06-36A

2шт.

1

87588897R

Remanufactured Hydraulic Motor

REMAN-HYD MOTOR

2шт.

1

87588897C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

2

87749906

HYD TUBE,9.5 mm OD x 680.3, 61.5 mm L

2 Speed RH

1шт.

3

87750386

HYD TUBE,25.4 mm OD x 682.7, 92.9 mm L

Loop Top RH

1шт.

4

87749905

HYD TUBE,9.5 mm OD x 720.4, 266.4 mm L

Brake RH

1шт.

5

87749907

HYD TUBE,12.7 mm OD x 671.9, 280.7 mm L

Drain RH

1шт.

6

9628098

NUT,M8 x 1.25, Cl 10

4шт.

7

120040

CARRIAGE BOLT,Short Nk, M8 x 80mm, Cl 8.8

4шт.

8

87452146

BAR

Barclamp Top

2шт.

9

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

.25 Pipe 2.00in Znd

4шт.

10

87452108

CLAMP

Clamptube

4шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 11A

4шт.

11a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 12A

2шт.

12a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 13A

4шт.

14

87750385

HYD TUBE,25.4 mm OD x 818.1, 107.7 mm L

Loop Bottom RH

1шт.

13a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

87749910

HYD TUBE,12.7 mm OD x 764.7, 75 mm L

Drain LH

1шт.

13a

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

16

87749909

HYD TUBE,9.5 mm OD x 740.8, 92.3 mm L

2 Speed LH

1шт.

17

87750387

HYD TUBE,25.4 mm OD x 818.2, 107.7 mm L

Loop Bottom LH

1шт.

14a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

19

87750388

HYD TUBE,25.4 mm OD x 694.3, 82 mm L

Loop Top LH

1шт.

15a

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

20

87749908

HYD TUBE,9.5 mm OD

Brake LH

1шт.
