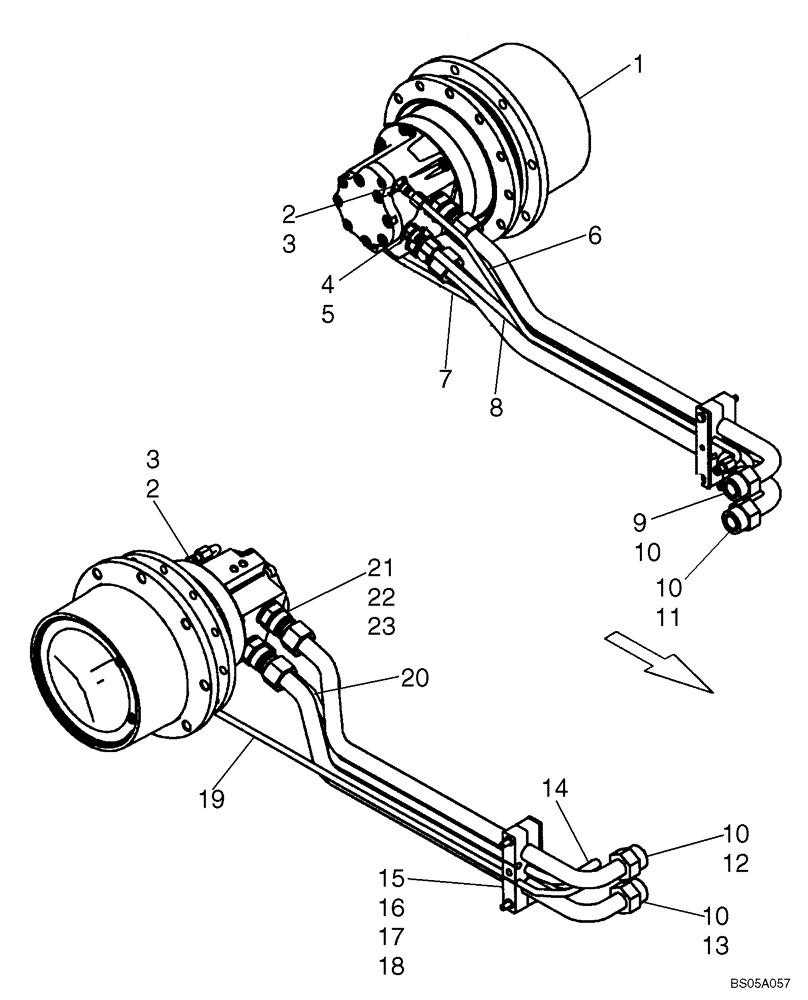

Запчасти Case IH 450CT (06-05) - HYDROSTATICS - DRIVE MOTORS (450CT WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
450CT WITH SPLIT PUMP CONFIGURATION
1шт.
1
87447321
MOTOR
Drive Motor; Incl. Kits 87461859, 87461860
2шт.
1
87461916
REMAN-HYD MOTOR
Remanufactured Drive Motor; Incl. Kits 87461859, 87461860
2шт.
1
87461918
CORE-MOTOR HYDRAULIC
Return Number
2шт.
87461859
SEAL KIT
Motor Seals
1шт.
87461860
KIT
Cam Bolts
1шт.
4
86509028
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
Incl. 5
2шт.
6
87452118
HYD TUBE,9.53 mm OD
Left Hand Two Speed
1шт.
7
87452116
HYD TUBE,9.53 mm OD
Left Hand Brake
1шт.
8
87452117
HYD TUBE,12.7 mm OD
Left Hand Case Drain
1шт.
9
87461539
HYD TUBE,25.4 mm OD x 671.5, 79.6 mm L
Left Hand Loop, Top; Replaces 87452114, 87459674
1шт.
11
87461537
HYD TUBE,25.4 mm OD x 687, 89.8 mm L
Left Hand Loop, Bottom; Replaces 87452115, 87459675
1шт.
12
87461538
HYD TUBE,25.4 mm OD x 671.5, 88.1 mm L
Right Hand Loop, Top; Replaces 87452109, 87459672
1шт.
13
87461536
HYD TUBE,25.4 mm OD x 687, 81.5 mm L
Right Hand Loop, Bottom; Replaces 87452110, 87459673
1шт.
14
87452112
HYD TUBE,12.7 mm OD
Right Hand Case Drain
1шт.
15
87452108
CLAMP
Clamp
4шт.
16
87302564
SPACER,9.2mm ID x 13.7mm OD x 50.8mm L
1/4 Pipe 2.00 in
4шт.
17
87452146
BAR
Clamp Top
2шт.
18
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
4шт.
19
87452111
HYD TUBE,9.53 mm OD
Right Hand Brake
1шт.
20
87452113
HYD TUBE,9.53 mm OD
Right Hand Two Speed
1шт.
21
87303844
HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB
Incl. 22, 23
4шт.
Выбрано товаров: 28
