(06-34) - PUMP, GEAR (450, 450CT WITH IN-LINE PUMP CONFIGURATION)

Запчасти Case IH 450CT (06-34) - PUMP, GEAR (450, 450CT WITH IN-LINE PUMP CONFIGURATION) Invalid section

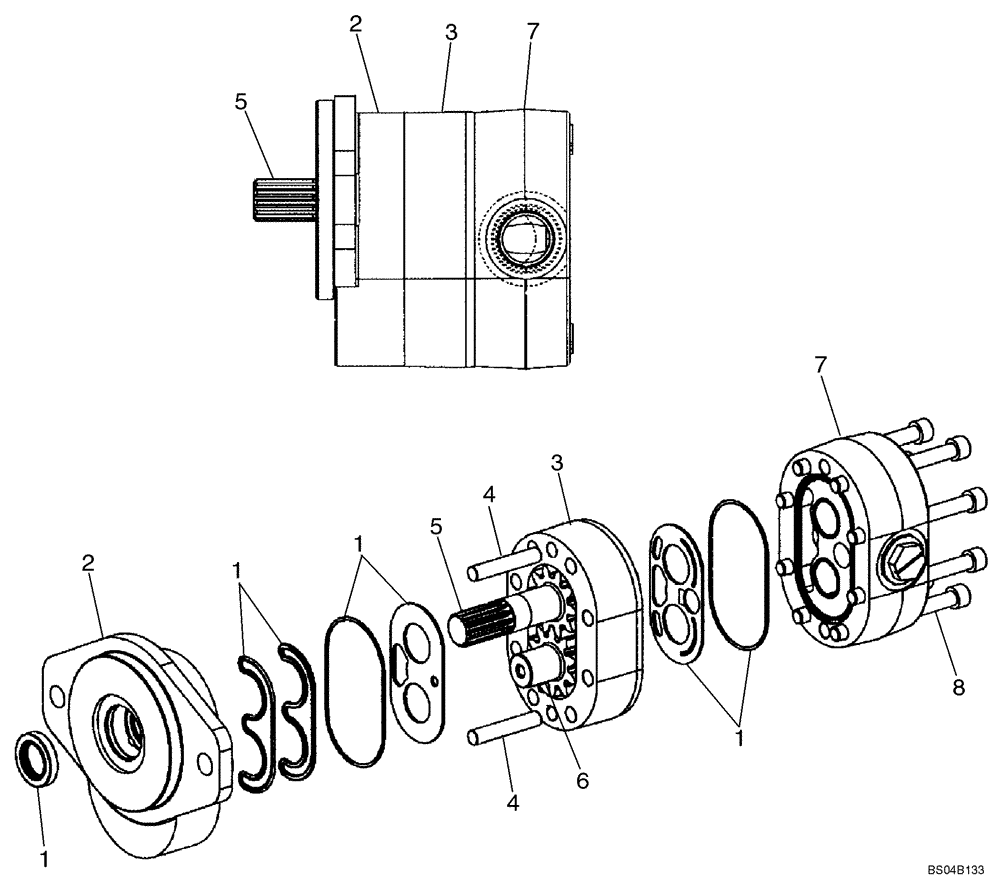

Схема запчастей Case IH 450CT - (06-34) - PUMP, GEAR (450, 450CT WITH IN-LINE PUMP CONFIGURATION) Invalid section
5
4
1
5
7
1
4
2
3
1
2
8
1
6
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8

1шт.

87024695R

450CT BSN N7M464019 (4/05-12/07)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drve

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
