Артикул
Название
Примечание
Количество

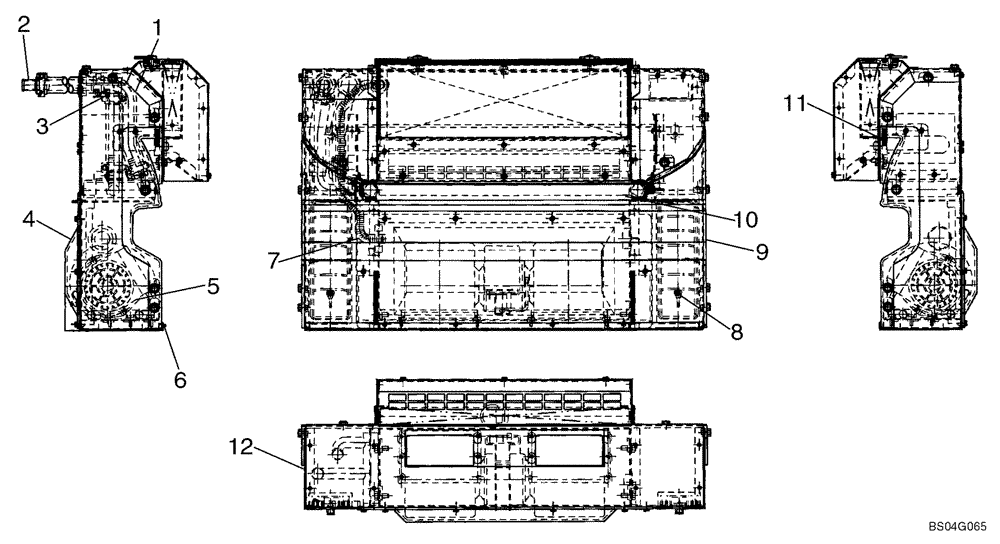

87029159
HEATER ASSY.
Incl. 1 - 12
1шт.
1
290502
PIN
Heater Hose; 5/8 x 30" Long
2шт.
2
87035457
TUBE,0.625" DIA x 1.585" L
5/8
2шт.
4
87029688
COVER
1шт.
5
87029689
BLOWER ASSY.
1шт.
5
87383273R
450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Both ASSY, Reman for New PN 87029689
REMAN-BLOWER
1шт.
5
87383273C
Return Number
CORE-BLOWER
1шт.
6
87029690
PANEL
1шт.
7
87035460
WIRE HARNESS
Heater
1шт.
8
87035459
VENT (AIR)
2шт.
9
87029693
COVER
1шт.
10
87029694
CORE
1шт.
11
87033934
AIR DUCT
Incl. 11A, 11B; If Used; Used With Case Ref 12, Part Number 87029687
1шт.
11
87591145
COVER ASSY
If Used; Used With Case Ref 12, Part Number 87383269, Air Filter Assy 87591144
1шт.
11a
87033906
GRILLE
1шт.
11b
87033905
COVER
1шт.
87591144
COVER ASSY
If Used; Used With Ref 11, Cover Assy 87591145, and Ref 12, Case 87383269; Component Parts Not Serviced Separately
1шт.
12
87029687
CASE
If Used; Use With Cover Assy Ref 11, Part Number 87033934
1шт.
12
87383269
CASE
If Used; Use With Cover Assy Ref 11, Part Number 87591145
1шт.
Выбрано товаров: 21
