Запчасти Case IH 450CT (09-31) - WINDOWS - SIDE AND TOP (09) - CHASSIS

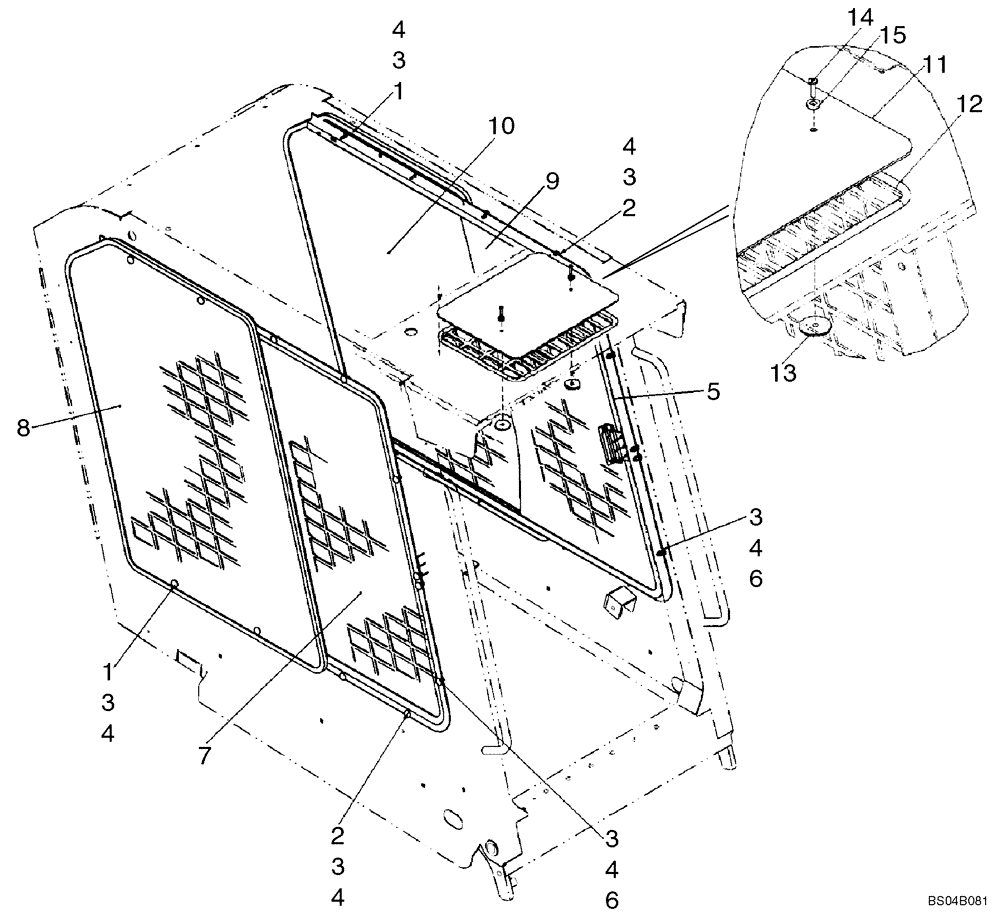

Схема запчастей Case IH 450CT - (09-31) - WINDOWS - SIDE AND TOP (09) - CHASSIS
13
8
14
4
5
4
4
3
3
1
9
6
12
4
2
2
11
7
4
6
3
3
3
4
1
3
10
15

Артикул

Название

Примечание

Количество

1

86546084

SCREW,M5 x 35mm, Cl 4.8

If Used

8шт.

1

86585710

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

If Used, Used With (1) Each Additional Washers 103777A1 and 140182

8шт.

103777A1

SEALING WASHER

Sealing; No Longer Used, Order 86624182

8шт.

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

8шт.

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

2

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

8шт.

3

87035253

COVER

24шт.

4

87035254

RETAINER

24шт.

5

87035318

SEAL

2шт.

6

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

8шт.

7

87458068

WINDOW ASSY

Right Hand Interior; See Fig 09-31A

1шт.

8

87037335

WINDOW ASSY

Right Hand Exterior; See Fig 09-31B

1шт.

9

87458067

WINDOW ASSY

Left Hand Interior; See Fig 09-31C

1шт.

10

87037337

WINDOW ASSY

Left Hand Exterior; See Fig 09-31D

1шт.

11

239916A1

WINDOW

Top

1шт.

12

240657A1

SEALING STRIP

1310 mm (51-5/8 in); Cut From 382086A1

1шт.

13

E99641

CAP

2шт.

14

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

15

103777A1

SEALING WASHER

1шт.

353-400

PLUG,Dome, .250" hole, Nylon

Models with top window

2шт.

Выбрано товаров: 20
