Запчасти Case IH 450CT (09-26) - HEAT SHIELD (09) - CHASSIS

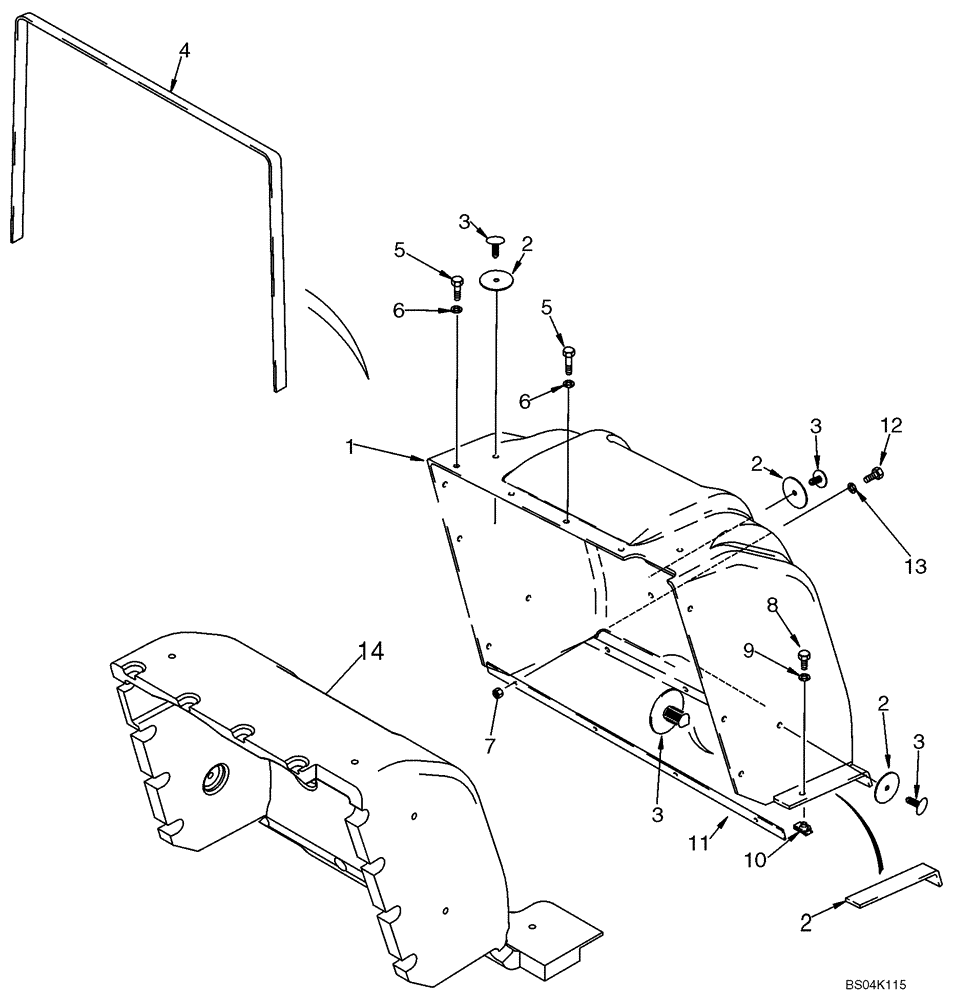

Схема запчастей Case IH 450CT - (09-26) - HEAT SHIELD (09) - CHASSIS
5
7
3
12
4
2
13
6
1
11
10
3
2
6
5
3
3
2
8
14
9
2

Артикул

Название

Примечание

Количество

1

426378A1

SHIELD

Heat; Tan

1шт.

2

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

5шт.

3

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia; Push-In

13шт.

4

250705A2

BAND

1650 mm

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

832-41406

NUT,M6 x 1, Cl 8

4шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

10

833-40406

NUT,M6, U

2шт.

11

247118A1

BAND

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

87040372

INSULATOR

87462534 (With Added Cutouts For Air Intake Hose) Used In Production Only, Not Serviced

1шт.

Выбрано товаров: 14
