Запчасти Case IH 450CT (09-08A) - CHASSIS (450CT) (09) - CHASSIS

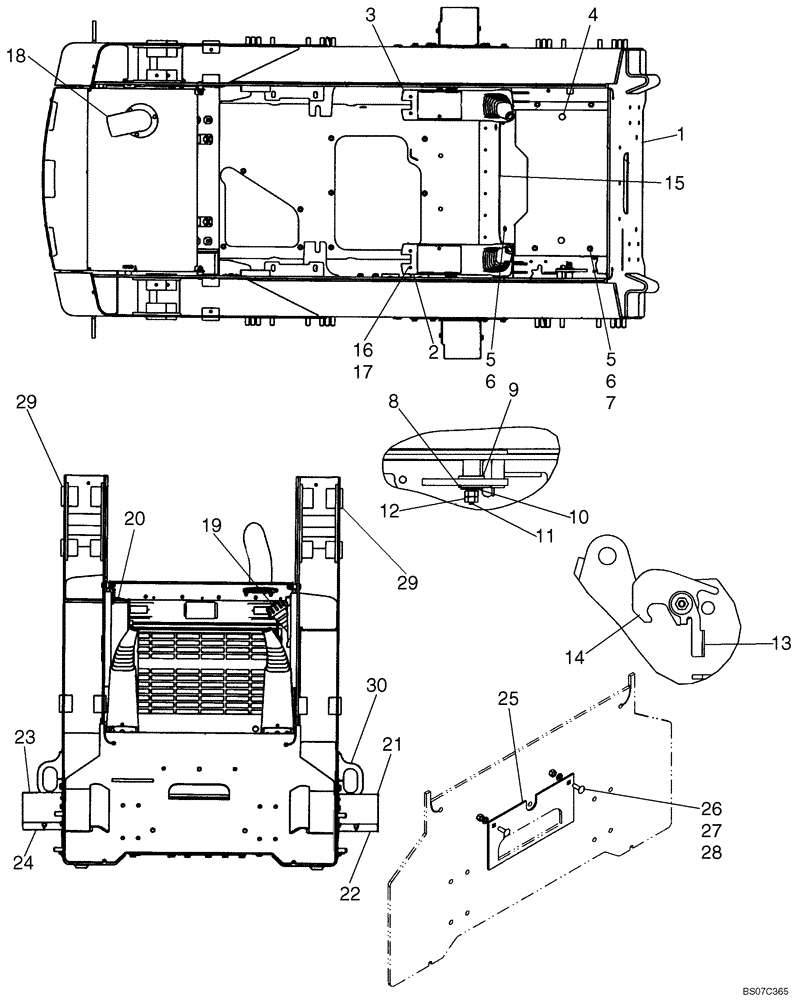

Схема запчастей Case IH 450CT - (09-08A) - CHASSIS (450CT) (09) - CHASSIS
22
19
27
6
5
25
14
29
28
15
17
20
6
5
30
18
12
2
16
13
23
7
29
21
8
1
3
9
11
26
10
24
4

Артикул

Название

Примечание

Количество

87647044

SERVICE KIT

Kit, Chassis; Incl Frame 87618161, Fuel Cap, Hydraulic Cap, And Sender Unit

1шт.

1

87618161

FRAME

450CT FRAME; Used in Production; Replaces 87458174

1шт.

2

REF

INSTRUCTION

Right Hand Control Console; See Figure 09-10

1шт.

3

REF

INSTRUCTION

Left Hand Control Console; See Figure 09-10

1шт.

4

87433644

PLATE

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

122158A1

NUT,M8, U

4шт.

8

294967A1

WASHER

Latch Mounting

1шт.

9

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

3шт.

10

278332A1

SPRING WASHER

M12 x 30; 10.9

1шт.

11

294943A1

STUD

13/16 x 1-15/32 x 1/8; Latch Mounting

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

294911A2

HOOK

Plate Latch Return

1шт.

14

294910A1

LATCH

1шт.

15

87437250

COVER

Heel Plate; Flat; If Used

1шт.

15

87430673

ANGLE

Heel Plate; With Convex In Center; If Used

1шт.

16

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

4шт.

17

86509828

LOCK WASHER,M5

4шт.

18

REF

INSTRUCTION

Hood, Rear; See Figure 09-14

1шт.

19

257448A1

CAP

Oil Filler; Incl. 292259A1

1шт.

292259A1

SEAL

Filler Cap; Not Illustrated

1шт.

20

H436887

CAP

Fuel Filler

1шт.

21

87460103

PLATE

Hose Guard; Upper Left

1шт.

22

87460105

PLATE

Hose Guard; Lower Left

1шт.

23

87460107

PLATE

Hose Guard; Upper Right

1шт.

24

87460109

COVER PLATE

Hose Guard; Lower Right

1шт.

25

87041290

PLATE ASSY.

1шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

28

86512554

NUT,M10 x 1.5, Cl 10

2шт.

29

295761A1

PIVOT

Boss, Pivot

2шт.

30

87422323

PLATE

Rear Tie Down Brackets

2шт.
