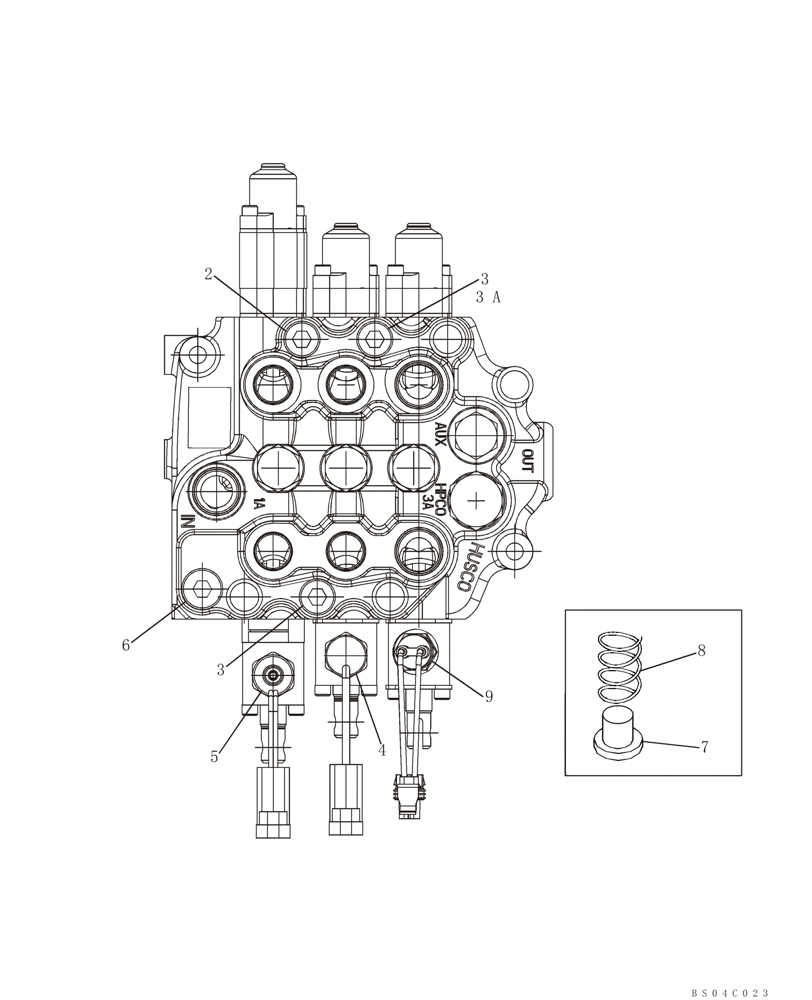

Запчасти Case IH 450CT (08-09) - VALVE ASSY, CONTROL - LOADER (08) - HYDRAULICS

87439640

CONTROL VALVE

Incl. 1 - 9

1шт.

87635384R

450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Reman for New PN 87439640

REMAN-HYD VALVE

1шт.

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87527172

VALVE

Replaces 87439640; Component Parts Not Yet Available

1шт.

1

87635384R

450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87445930

SEAL KIT

See Figure 08-10

1шт.

2

87445935

VALVE

Workport, Relief; Component Parts Not Serviced Separately

1шт.

3

87445943

VALVE

Workport, Shutoff Plug; Component Parts Not Serviced Separately

2шт.

4

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

5

87445988

SOLENOID,Spool Lockout, With Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

6

87445991

VALVE

Main Relief; Component Parts Not Serviced Separately

1шт.

7

87446002

POPPET

Load Check; Component Parts Not Serviced Separately

3шт.

8

87446003

SPRING,6.7mm OD

Load Check Poppet; Component Parts Not Serviced Separately

3шт.

9

87446617

SWITCH

Auxiliary Spool; Component Parts Not Serviced Separately

1шт.
