Запчасти Case IH 450CT (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

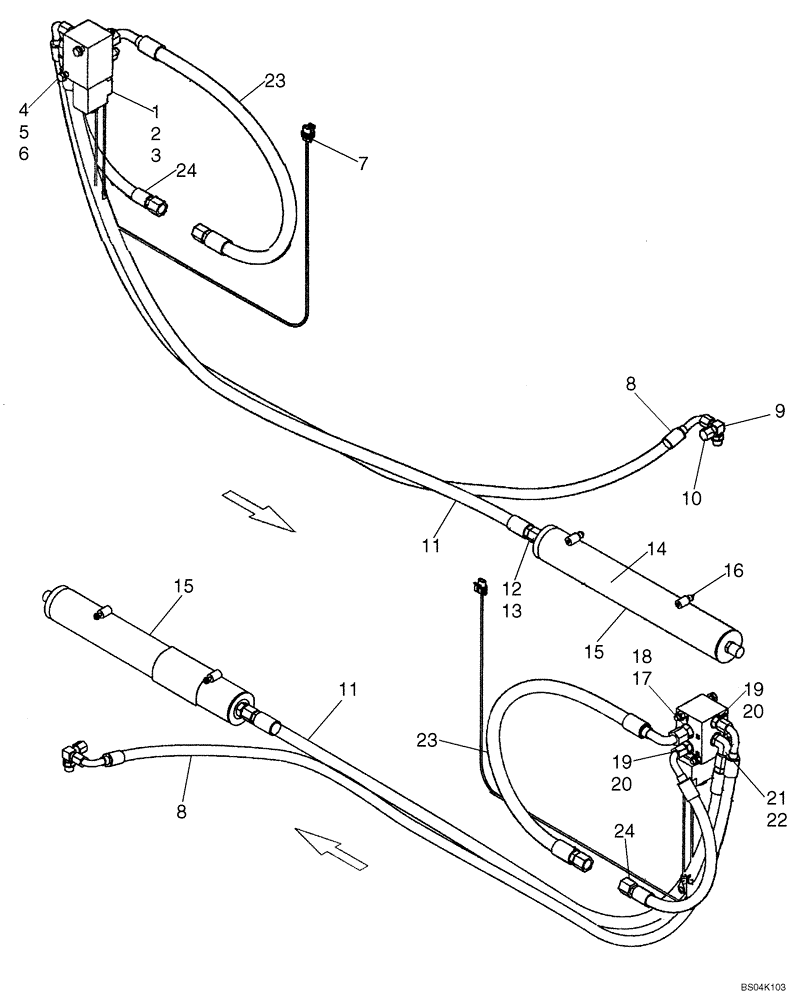

Схема запчастей Case IH 450CT - (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
1
7
17
18
3
23
19
10
5
20
15
2
11
8
23
21
12
20
24
9
4
16
11
22
13
8
14
19
6
15
24

Артикул

Название

Примечание

Количество

1

87428444

VALVE

Ride Control; Solenoid; Incl. 2, 3

1шт.

2

87424684

SEAL KIT

Not Illustrated

1шт.

3

87424685

REPAIR KIT

Solenoid; Not Illustrated

1шт.

4

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

2шт.

7

310838A1

HARNESS

Ride Control

1шт.

8

87437220

HOSE ASSY.

Tank To Port T

1шт.

9

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

3/8 Tube

1шт.

10

574342

CAP,9/16" - 18 JIC

1шт.

11

87437219

HOSE ASSY.

Accumulator To Port P

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System; See Figure 09-44 For Ride Control Decals

1шт.

15

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

16

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

17

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl. 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 20

2шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl. 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

87437221

HOSE ASSY.

Lift Cylinder Base To Port C2

1шт.

24

87437222

HOSE ASSY.

Lift Cylinder Base To Port C1

1шт.

25

87431347

DIA KIT, ADD PROD

Ride Control Kit

1шт.

Выбрано товаров: 25
