Запчасти Case IH 450CT (08-02A) - HYDRAULICS - LOADER BUCKET (450, 450CT WITH IN-LINE PUMP/PILOT CONTROL) (08) - HYDRAULICS

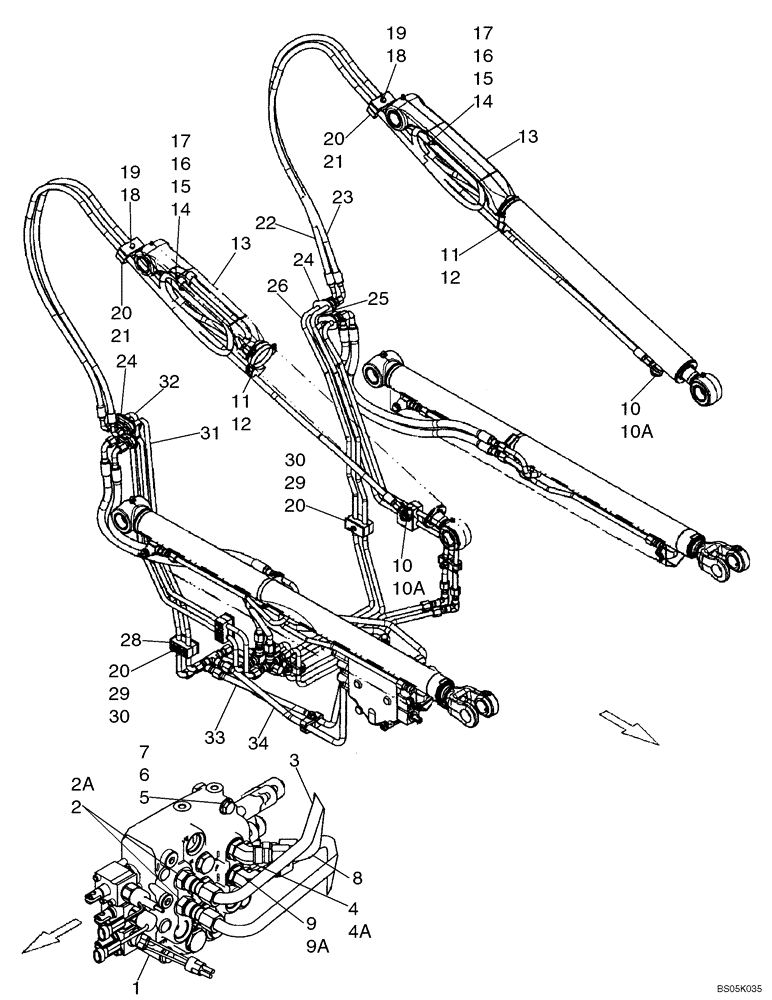

Схема запчастей Case IH 450CT - (08-02A) - HYDRAULICS - LOADER BUCKET (450, 450CT WITH IN-LINE PUMP/PILOT CONTROL) (08) - HYDRAULICS
22
20
12
34
10
33
20
31
11
23
28
24
13
8
3
2a
14
12
18
1
24
19
18
32
21
6
4
29
17
10
15
9
17
13
14
7
10a
25
10a
16
16
30
30
5
29
2
20
20
15
19
4a
11
21
9a
26

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

450CT WITH IN-LINE PUMP CONFIGURATION/PILOT CONTROL

1шт.

87638777

SERVICE KIT

ConversionKit, Split Pump To In-Line Pump, Incl 33-34

1шт.

1

87583285

VALVE

Control Valve; See Fig 08-21; Replaces 87527172

1шт.

1

87527172

VALVE

Replaces 87439640; Component Parts Not Yet Available; Models With Hydraulic Attachment, See Figure 08-13

1шт.

1

87635384R

450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87546974

HYDRAULIC VALVE

Models With Pilot Control; Standard; See Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35; Models With Hydraulic Attachment, See Figure 08-13B

1шт.

2

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 2A

2шт.

2a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

87431363

HYD TUBE,15.9 mm OD

Valve Lift, Lower

1шт.

4

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 4A

1шт.

4a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

M10 x 24 x 2

2шт.

7

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

2шт.

8

87442096

HYD TUBE,15.9 mm OD

Valve Lift, Raise

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl. 9A

1шт.

9a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 10A

1шт.

10a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

D38648

BLOCK

Saddle Clamp 3/4 Tube x 4 cyl.; If Used With Hose Clamp 214-1452

2шт.

11

87581635

SADDLE

Saddle Tube Support; If Used With Hose Calmp 86633353

2шт.

12

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

If Used With Saddle Clamp D38648

2шт.

12

86633353

HOSE CLAMP,70mm - 92mm

If Used With Saddle Tube Support 87581635

2шт.

13

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

Tip, 63.5 Dia Cylinder 38.1 Dia Rod; See Figure 08-12

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT BSN N7M464019 (4/05 - 12/07)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

9628098

NUT,M8 x 1.25, Cl 10

2шт.

16

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

293891A1

SPACER

1/4 x 33

2шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Clamp Top

4шт.

21

257857A1

CLAMP

2шт.

22

87431366

HOSE ASSY.,9.53mm ID x 3005mm L

Tip Cylinder Base End

2шт.

23

87431367

HOSE ASSY.,9.53mm ID x 2400mm L

Tip Cylinder Base End

2шт.

24

376523A2

SUPPORT,1/2"

4шт.

25

87431360

HYD TUBE,12.7 mm OD x 669.5, 593 mm L

Left Hand Tip, Dump

1шт.

26

87431361

HYD TUBE,12.7 mm OD x 712.2, 669.5 mm L

Left Hand Tip, Curl

1шт.

27

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 27A

1шт.

27a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

29

257919A1

CLAMP BRACKET

2шт.

30

259905A1

SPACER

1/4 x 31.25

2шт.

31

87431358

HYD TUBE,12.7 mm OD

Right Hand Tip, Dump

1шт.

32

87431359

HYD TUBE,12.7 mm OD

Right Hand Tip, Curl

1шт.

33

87349764

TUBE,15.90 mm OD

Valve Tip, Curl

1шт.

34

87350369

TUBE,15.90 mm OD

Valve Tip, Dump

1шт.

Выбрано товаров: 49
