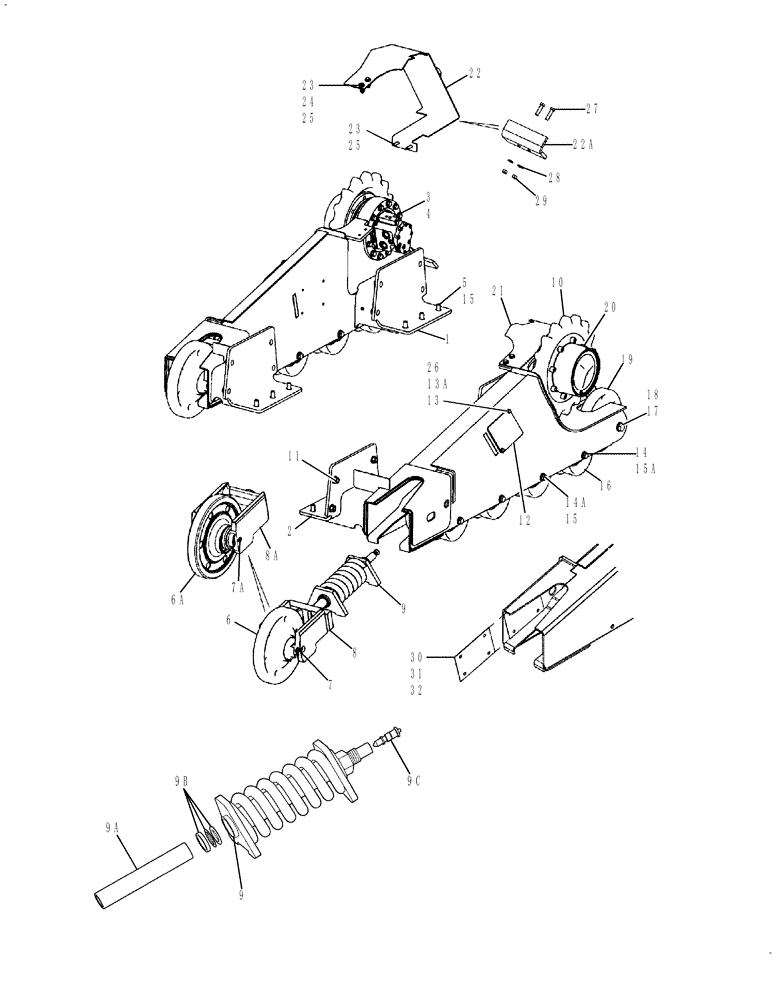

Запчасти Case IH 450CT (06-48) - FINAL DRIVE (450CT) (06) - POWER TRAIN

87563154

KIT

Roller And Idler; Includes Ref. 6A, 7A, 14 - 15A, 16, 19 And Instructions

1шт.

1

87582825

SWING CARRIAGE

Right Hand; Replaces 87462792, 87447238, 87459919

1шт.

1

87669355

FRAME

Track Frame RH, Used with Rexroth Drive Motors

1шт.

2

87582817

SWING CARRIAGE

Left Hand; Replaces 87462794, 87447237, 87459918

1шт.

2

87669353

FRAME

Track Frame LH, Used with Rexroth Drive Motors

1шт.

3

87303344

BOLT,Hex, M14 x 85mm, Cl 10.9

24шт.

4

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

5

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

6

87447229

IDLER

350 mm, Front; If Used

2шт.

6

47378990R

REMAN-WHEEL IDLER

350 mm, Front

2шт.

6

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

6a

87480418

FRONT IDLER,350mm OD x 194mm W

350 mm, Front; If Used; Replaces 87462176, 87535298

2шт.

6a

47378990R

REMAN-WHEEL IDLER

350 mm, Front

2шт.

6a

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

7

87460026

HEX SOC SCREW,Flat Hd Modified, M20 x 2.5 x 32mm

M20 x 32 x 2.5; If Used

4шт.

7a

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

If Used

4шт.

8

87461520

YOKE

Front Idler; If Used

2шт.

8a

87462287

YOKE

Front Idler; If Used

2шт.

9

87602985

TENSIONER

Track Tensioner; Replaces 87458724, 87447231

2шт.

9a

87602988

ROD

Seal Kit For Track Tensioner, 87602985; Incl. Scraper, Spacer, O-ring

1шт.

9b

87602987

SERVICE KIT

Piston For 87602685

1шт.

9c

87356572

VALVE

Grease Valve For Tension Spring 87602985, Ref 9

1шт.

84213764

CAP

Cap, Grease Valve For Tension Spring 87602985

1шт.

10

87460888

SPROCKET

17 Tooth - 86 Pitch; Replaces 87447232

2шт.

11

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

12

87354210

COVER

Plate, Zerk Cover; Replaces 87448727

2шт.

13

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

5/16 x .62; If Used

4шт.

13a

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

Used with Ref 26

4шт.

14

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

14a

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

15

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

28шт.

15a

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

16

87535297

TRACK ROLLER

Replaces 87447228; If Used

8шт.

16

87480419

TRACK ROLLER

If Used; P/n includes Roller Shell, Shaft, Brackets, Plugs, O-rings, Sealing Rings, Bushings- All NSS

8шт.

17

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

18

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

19

87480413

IDLER,290mm OD x 220mm W

Replaces 87447230; 87535299

2шт.

20

87303345

HEX SOC SCREW,M16 x 2 x 40mm, Cl 10.9, Full Thd

M16 x 40

16шт.

21

87589343

PLATE

Scraper Plate; Replaces 87459925; Used with Rexroth Drive Motors

1шт.

22

87459923

COVER PLATE

Right Rear Cover

1шт.

22a

87589343

PLATE

Scraper Plate; Replaces 87459923; Used with Rexroth Drive Motors

1шт.

23

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

If Used

8шт.

23

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

If Used

8шт.

24

86512554

NUT,M10 x 1.5, Cl 10

If Used

4шт.

25

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

If Used

12шт.

26

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used With 13A

4шт.

27

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

28

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

29

337475

NUT,M12, Cl 10

4шт.

30

87650011

SERVICE KIT

Yoke Shim Kit; Incl. 31, 32 And Instructions

1шт.

31

87650010

PLATE

16 Gage Shim

2шт.

32

87650009

PLATE

12 Gage Shim

2шт.
