(02-39) - COMPLETION PARTS (87380450)

Запчасти Case IH 445CT (02-39) - COMPLETION PARTS (87380450) (02) - ENGINE

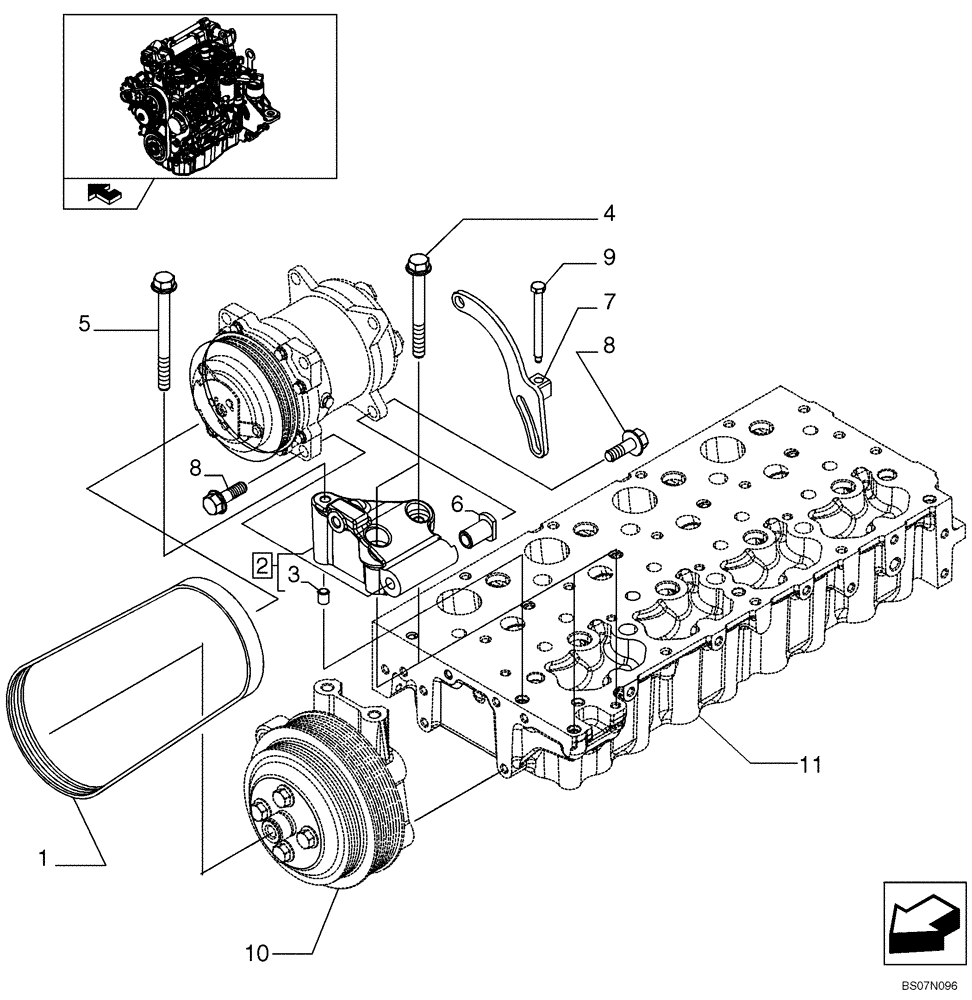

Схема запчастей Case IH 445CT - (02-39) - COMPLETION PARTS (87380450) (02) - ENGINE
6
10
8
2
7
1
4
5
9
8
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504223518

BELT

Belt

1шт.

2

87649945

BRACKET

Bracket

1шт.

3

2852481

DOWEL,8.5mm ID

D. 8,5 mm

2шт.

4

16592325

BOLT,M8 x 60mm

M8X40 mm

2шт.

5

16592625

SCREW,M8 x 80mm

M8X80 mm

2шт.

6

98431043

SLEEVE

Sleeve

1шт.

7

504252077

TENSIONER

Tensionser

1шт.

8

16675835

SCREW,M10 x 30mm

M10X30 mm

5шт.

9

504010032

SCREW

Screw

1шт.

10

REF

INSTRUCTION

See Figure 02-36, Belt Pulley Drive

1шт.

11

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.
