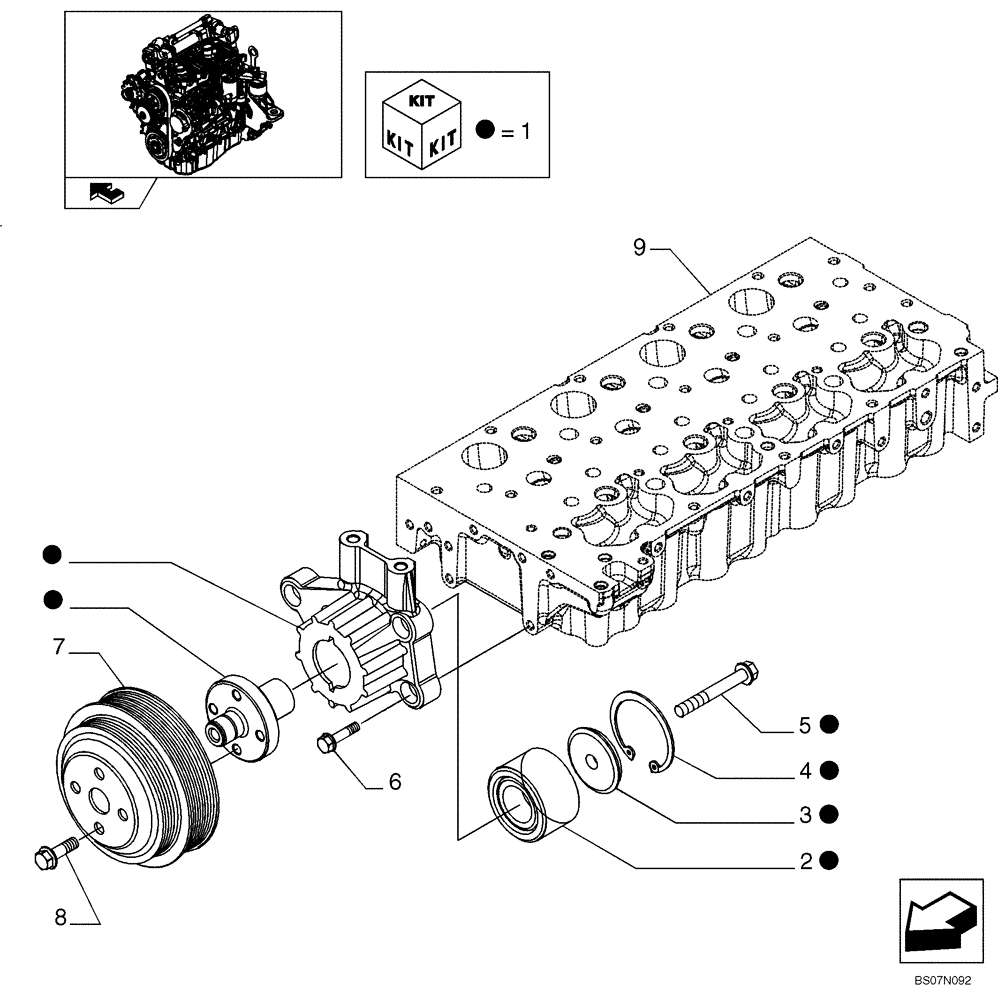

Запчасти Case IH 445CT (02-36) - BELT PULLEY DRIVE & COVER (87380450) (02) - ENGINE

1

504255373

BRACKET, SUPPORTING

Bracket

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

4

2852171

SNAP RING

1шт.

5

2852172

BOLT,Flng, M10 x 1.5 x 70mm

M10 x 70

1шт.

6

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

5шт.

7

504255370

PULLEY,157.4mm OD x 65mm W

Pulley

1шт.

8

18139424

SCREW,Hex, M10 x 20mm

M10X20 mm

4шт.

9

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.
