(02-34) - PIPING - ENGINE COOLING SYSTEM (87380450)

Запчасти Case IH 445CT (02-34) - PIPING - ENGINE COOLING SYSTEM (87380450) (02) - ENGINE

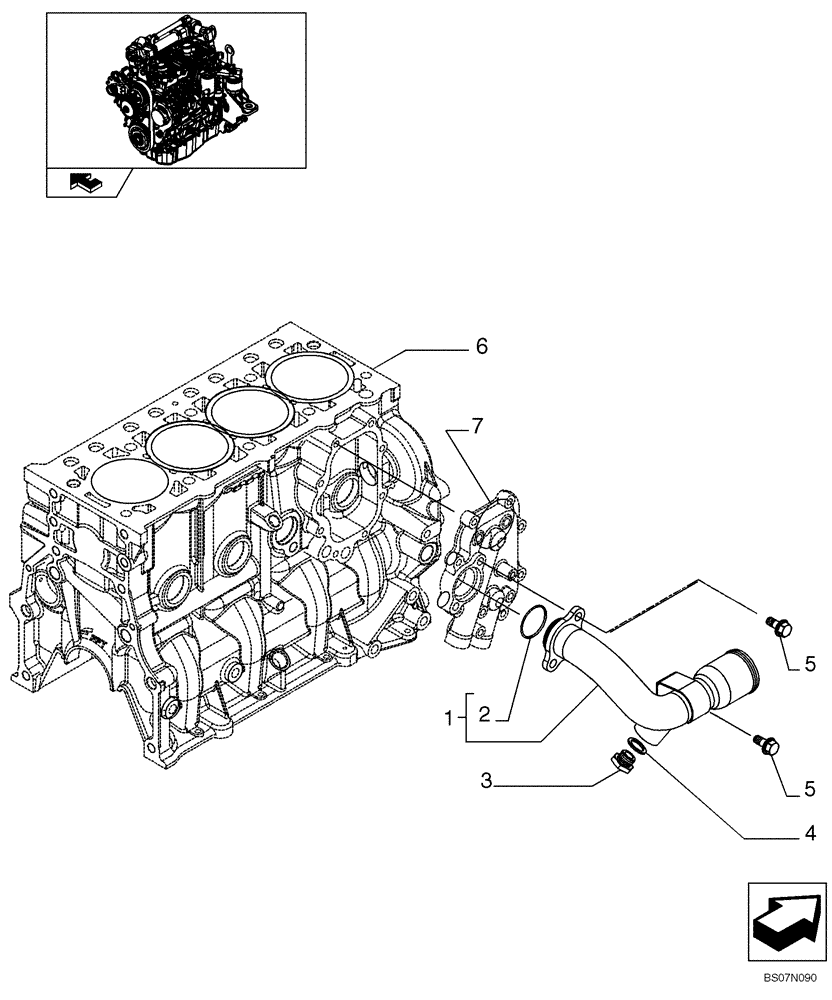

Схема запчастей Case IH 445CT - (02-34) - PIPING - ENGINE COOLING SYSTEM (87380450) (02) - ENGINE
2
1
6
7
5
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504182961

PIPE

Pipe

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D. 31,34X3,53 mm

1шт.

3

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

4

4858609

WASHER,Brass

D. 16X22 mm SP=1,5 mm

1шт.

5

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8X1,25X18 mm

1шт.

6

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-32, Heat Exchanger

1шт.

Выбрано товаров: 0
