(02-21) - EXHAUST MANIFOLD (87380450)

Запчасти Case IH 445CT (02-21) - EXHAUST MANIFOLD (87380450) (02) - ENGINE

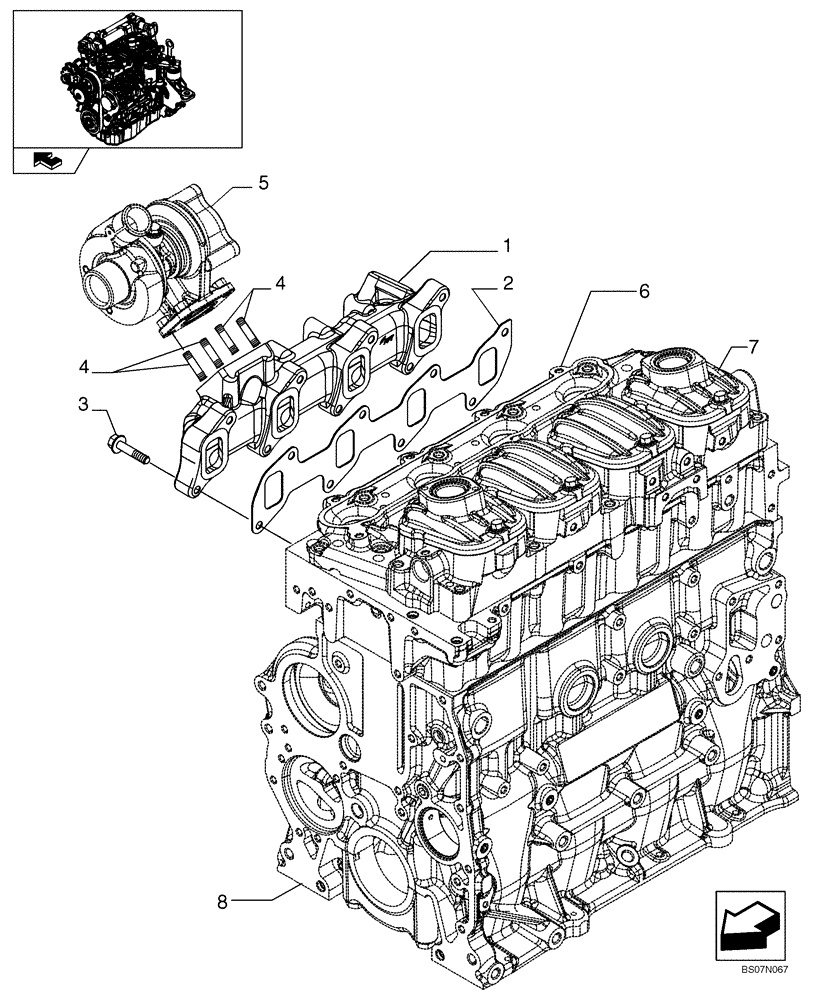

Схема запчастей Case IH 445CT - (02-21) - EXHAUST MANIFOLD (87380450) (02) - ENGINE
7
1
4
8
6
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504202849

EXHAUST MANIFOLD

Exhaust Manifold

1шт.

2

504170332

MANIFOLD GASKET

Gasket

1шт.

3

16674034

SCREW,M8 x 40mm

8шт.

4

16729334

STUD,M8 x 20mm

M8X20 mm

4шт.

5

REF

INSTRUCTION

See Figure 02-28, Turbo Charger

1шт.

6

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.

8

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.
