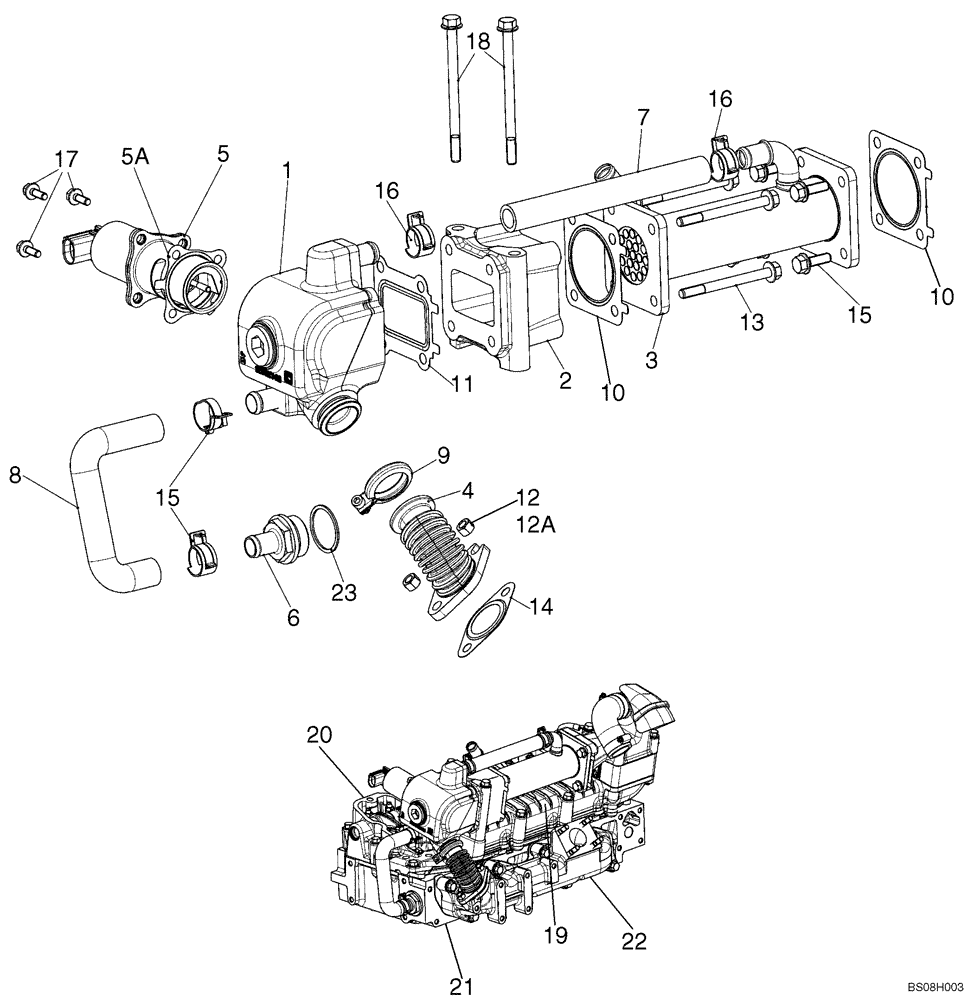

Запчасти Case IH 445CT (02-20) - HEAT EXCHANGER - ENGINE (87380450) (02) - ENGINE

1

504220143

BRACKET

Bracket

1шт.

2

504249191

BRACKET

Bracket

1шт.

3

504250954

HEAT EXCHANGER

Heat Exchanger

1шт.

4

504220149

JUNCTION

Junction

1шт.

5

504253059

BY-PASS VALVE

Engine Gas Recirculation (EGR) Valve

1шт.

5a

504225741

GASKET

Gasket

1шт.

6

504249332

FITTING,M35 x 1.5, 18mm

Fitting

1шт.

7

504220154

SLEEVE

Sleeve

1шт.

8

504220156

SLEEVE

Sleeve

1шт.

9

504196032

MOUNTING CLIP

Mounting Clip

1шт.

10

504221516

GASKET

Gasket

2шт.

11

504221515

GASKET

Gasket

1шт.

12

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

13

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

M8X90 mm

4шт.

14

504167862

GASKET

Gasket

1шт.

15

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

4шт.

16

18088392

MOUNTING CLIP

Mounting Clip

4шт.

17

16597224

SCREW,Hex, M6 x 18mm, Cl 8.8

M6X18 mm

3шт.

18

16598524

SCREW,M8 x 120mm

M8X120 mm

2шт.

19

REF

INSTRUCTION

See Figure 02-21, Exhaust Manifold

1шт.

20

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.

21

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

22

REF

INSTRUCTION

See Figure 02-19, Intake Manifold

1шт.

23

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.
