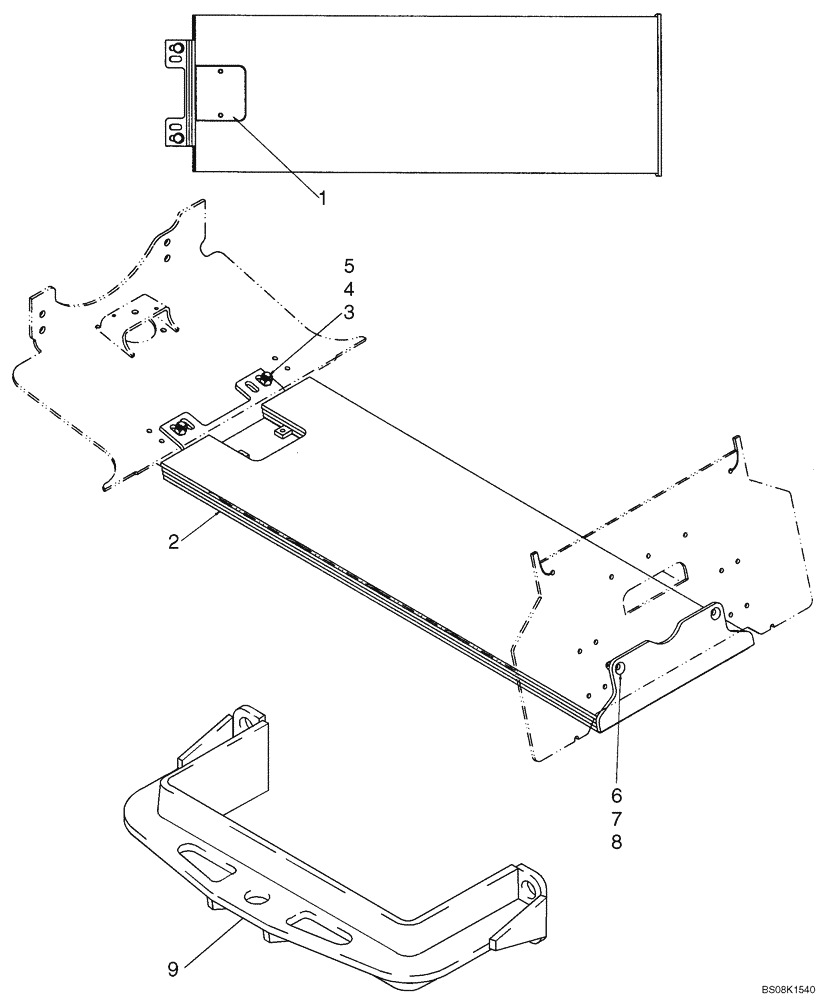

Запчасти Case IH 445CT (09-60) - COUNTERWEIGHTS - DRAWBAR (09) - CHASSIS

1

87672332

PLATE

Cover, Tan

1шт.

2

87458493

WEIGHT

Weight; 386.4 kg (851.8 lb)

1шт.

3

86536985

NUT,M20 x 2.5, Cl 10

2шт.

4

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

6

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

7

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

86512555

NUT,M16 x 2, Cl 10

2шт.

9

258483A1

DRAWBAR

1шт.
