Запчасти Case IH 445CT (09-52[02]) - HEATER SYSTEM 3-WAY WATER SUPPLY VALVE (09) - CHASSIS

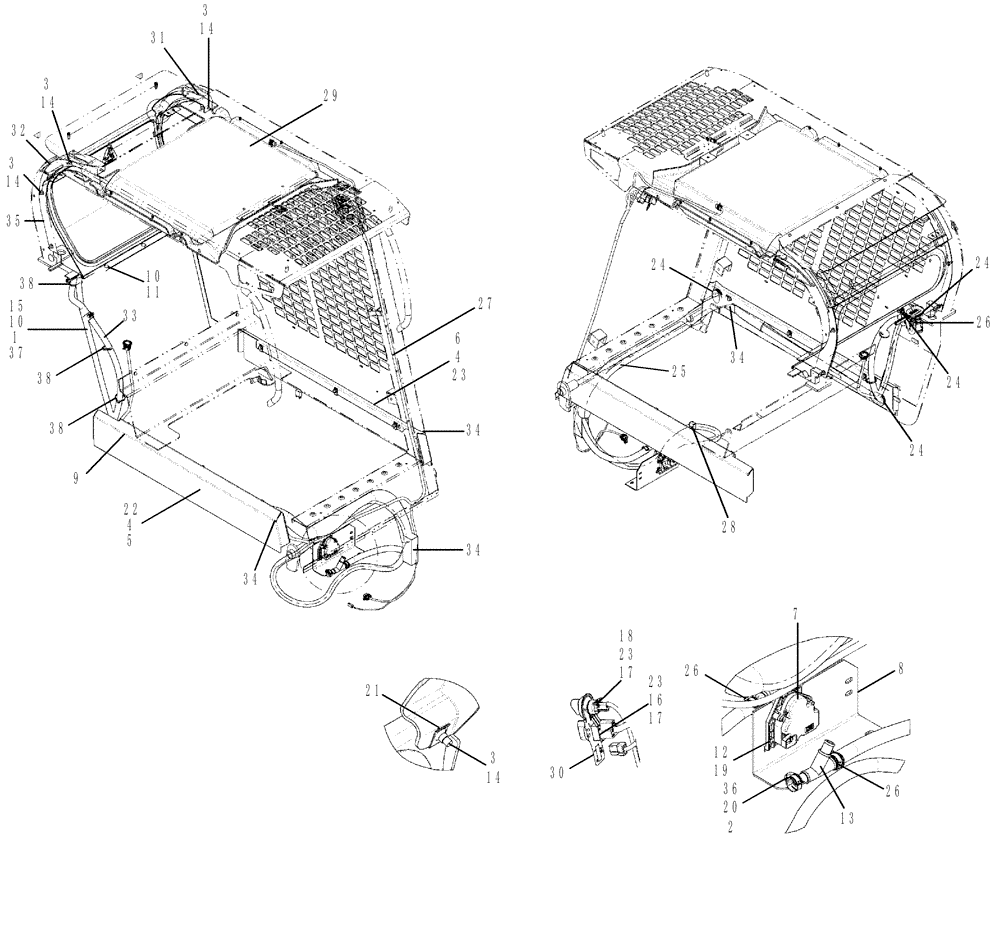

Схема запчастей Case IH 445CT - (09-52[02]) - HEATER SYSTEM 3-WAY WATER SUPPLY VALVE (09) - CHASSIS
28
38
38
19
10
6
27
4
3
29
23
37
30
16
23
15
12
24
7
26
34
38
34
24
35
3
13
5
18
10
24
31
36
3
20
21
26
26
3
34
22
24
1
17
14
8
17
34
23
33
4
14
9
2
32
25
14
11
14

Артикул

Название

Примечание

Количество

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

10шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

84129087

COVER

Hose, Right Hand

1шт.

6

84129088

COVER

Hose, Left Hand

1шт.

7

84245940

VALVE

Water Supply 3-Way

1шт.

8

84247343

BRACKET

Water Valve and Dryer

1шт.

9

84249456

HEATER HOSE

1шт.

10

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

13

86530043

FITTING,5/8” Y-Fitting

1шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

86729669

SWITCH

Blower

1шт.

17

86729670

KNOB

2шт.

18

86729675

SWITCH,5000 Ohm

Switch

1шт.

19

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

20

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

21

87016585

NUT,Spring, M6 x 1

2шт.

22

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

6шт.

23

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

24

87439844

GUARD

Trim ROPS Front

4шт.

25

87441006

TUBE,4.6mm ID x 1350mm L

AC Hoses

1шт.

26

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

6шт.

27

87482933

HARNESS

HVAC CP

1шт.

28

87655334

RELAY,12V, 35A, Micro

35A N.O. ISO280 Micro

1шт.

29

87669939

METAL LINER

Headliner, Duct

1шт.

30

87687236

DECAL

HVAC Control

1шт.

31

87705419

TRIM PANEL

Filler, Rear Window Left Hand

1шт.

32

87705420

TRIM PANEL

Filler, Rear Window Right Hand

1шт.

33

87717211

HEATER HOSE,15.75" mm ID, 3400.00 mm, SAE 20R3

1шт.

34

87729516

FOAM INSULATION

Foam, Crushable

4шт.

35

87742305

GLASS

Rear Window Assembly HVAC

1шт.

36

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

37

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

38

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

Выбрано товаров: 38
