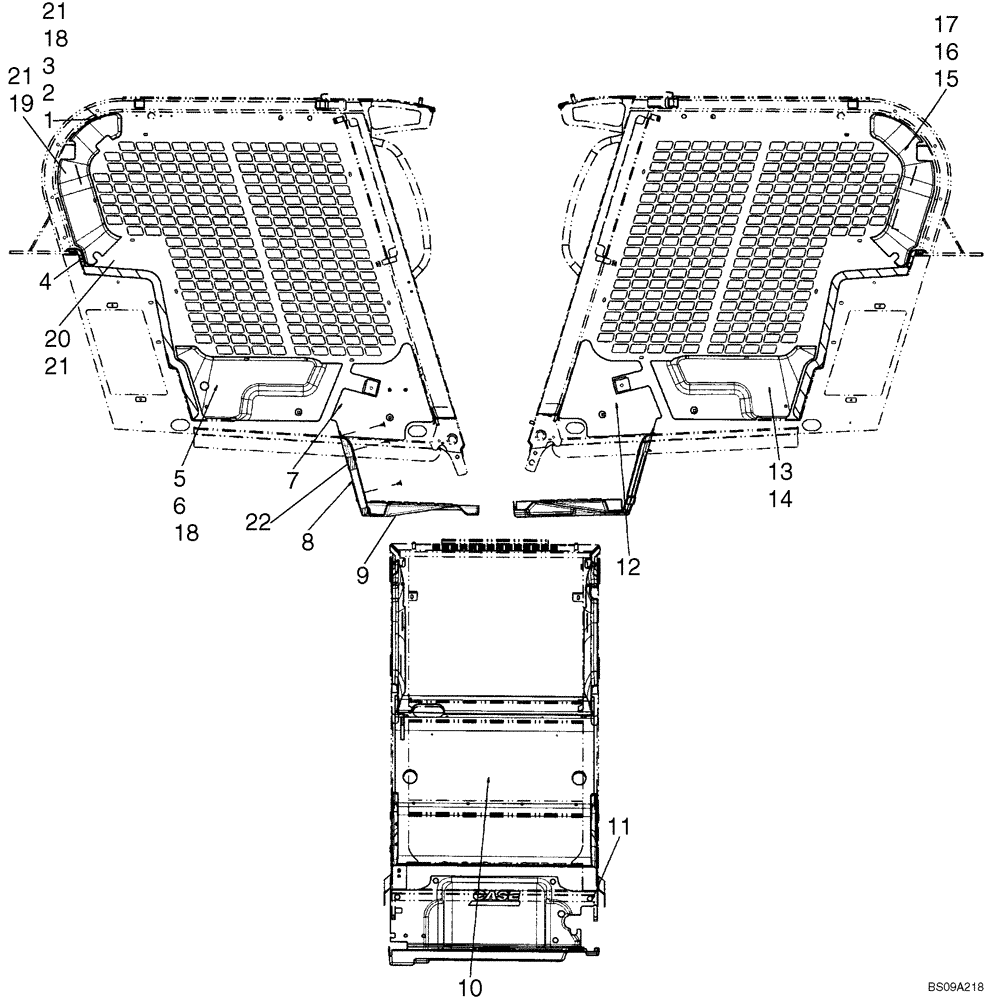

Запчасти Case IH 445CT (09-44) - INTERIOR TRIM (09) - CHASSIS

87660347

SERVICE KIT

Interior Trim; Incl 1 - 17

1шт.

1

87685874

LINER

Upper Panel, Right Rear; Incl 2, 3; If Used

1шт.

1

87743048

TRIM

RH Rear Upper

1шт.

2

87685909

FOAM

Block

1шт.

3

87685911

FOAM

Block

1шт.

4

87731174

LINER

Panel, Rear Window; If Used

1шт.

4

87743055

PANEL

Interior Rear Window

1шт.

5

87730067

LINER

Lower Panel, Right Rear; Incl 6; If Used

1шт.

5

87743045

TRIM

Interior RH Rear Lower

1шт.

6

87685909

FOAM

Block

1шт.

7

87727303

TRIM PANEL

Interior, Bottom RH

1шт.

8

87712704

FLOOR MAT

Heel Plate; If Used

1шт.

8

84129067

FLOOR MAT

Heel Plate

1шт.

9

87712703

FLOOR MAT

1шт.

9

84129066

FLOOR MAT

1шт.

10

87672070

LINER

Interior Trim, Heat Shield; If Used

1шт.

10

84138789

LINER

Interior Heat Shield

1шт.

11

87712706

FASTENER,16mm L, Nylon

Push In

5шт.

12

87727298

LINER

Interior Trim, Bottom LH

1шт.

13

87730054

LINER

Lower Panel, Left Rear; Incl 14; If Used

1шт.

13

87743044

TRIM

Interior LH Rear Lower

1шт.

14

87685909

FOAM

Block

1шт.

15

87685872

LINER

Upper Panel, Left Rear; Incl 16, 17

1шт.

15

87743047

TRIM

LH Rear Upper

1шт.

16

87685909

FOAM

Block

1шт.

17

87685911

FOAM

Block

1шт.

18

87743310

SPACER

Fastener, 20.6mm

8шт.

19

87743309

SPACER

Fastener, 40.0mm

4шт.

20

87743311

SPACER

Fastener, 34.0mm

2шт.

21

87713668

FASTENER

Push In

14шт.

22

87494358

FOAM INSULATION

Floor Plate

1шт.
