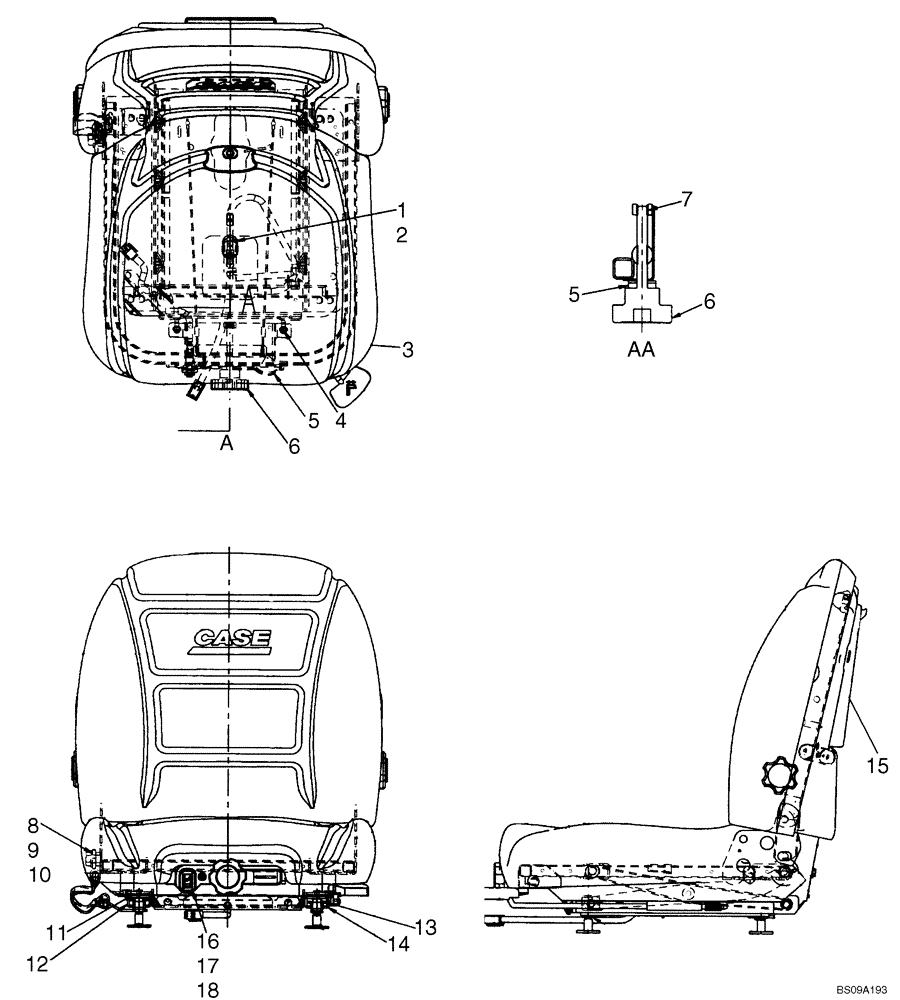

Запчасти Case IH 445CT (09-23A) - SEAT MOUNTING - DELUXE SUSPENSION SEAT (09) - CHASSIS

87662514

SEAT

Suspension Seat Assy; Incl 1 - 15

1шт.

1

84130082

SWITCH

Switch Operator Presence

1шт.

2

84130073

HARNESS

1шт.

3

84130068

SEAT CUSHION

1шт.

4

84130065

SELF-TAP SCREW,1/4" - 20 x 3/4"

.25-20 x .75

2шт.

5

84130060

GAUGE

Weight Indicator

1шт.

6

84130064

KNOB

Weight Adjustment

1шт.

7

84130079

LOCK NUT

.3125-18

1шт.

8

84130058

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

Tether

1шт.

10

NSS

NOT SOLD SEPARAT

Hex Bolt, M12

1шт.

11

84130063

WASHER

7шт.

12

84130080

ADJUSTER

Adjuster, Slave

1шт.

13

84130078

SELF-TAP SCREW,5/16" - 18 x 1"

.3125-18 x .75

4шт.

14

84130062

ADJUSTER

Assy

1шт.

15

84130066

SEAT BACK

Rear Manual, Kit Incl (5) #8-18 Screws Which Are Not Serviced Separately

1шт.

16

84130070

SWITCH

Heat Switch

1шт.

17

84130081

SCREW,#8 - 18 x 3/4"

Tapping Screw 8-18

1шт.

18

84130071

BRACKET

Switch Bracket

1шт.
