Запчасти Case IH 445CT (09-18) - CONTROLLER - MOUNTING (PILOT CONTROL) (09) - CHASSIS

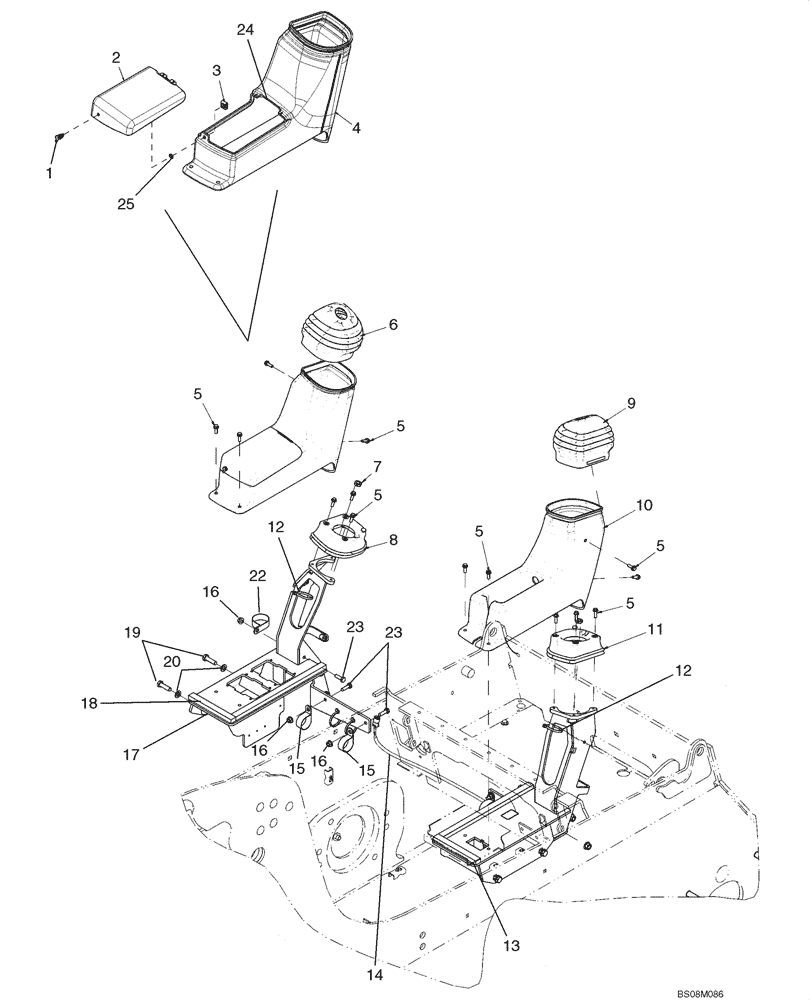

Схема запчастей Case IH 445CT - (09-18) - CONTROLLER - MOUNTING (PILOT CONTROL) (09) - CHASSIS
5
5
15
3
5
5
9
11
24
4
5
8
15
14
12
1
23
16
22
13
18
6
16
5
25
19
2
10
7
23
20
17
16
12

Артикул

Название

Примечание

Количество

1

87568437

WING NUT

If Used

1шт.

1

273890

THUMB SCREW,#10 - 32 x 3/4"

If Used

1шт.

2

87647723

COVER

1шт.

3

236535A1

CLIP,ELECTRICAL

If Used

1шт.

3

87301324

NUT,Spring, M5 x 0.8

Spring Multi-Thd; If Used

1шт.

4

87647720

CONSOLE

Console, LH

1шт.

5

87556251

SCREW,Hex, 1/4" - 20 x 3/4"

Hex Head 1/4-20 X 3/4 in.

9-14шт.

6

87568426

BOOT

LH

1шт.

7

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

2шт.

8

87739659

FOAM INSULATION

Secondary Seal, LH; Replaces 87646402

1шт.

9

87568427

BOOT

RH

1шт.

10

87647719

CONSOLE

Console, RH

1шт.

11

87739658

FOAM INSULATION

Secondary Seal, RH; Replaces 87646401

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

13

87725336

BRACKET

Console Bracket, RH

1шт.

14

87571936

HARNESS

Interlock/Float; If Used

1шт.

14

87476478

HARNESS

Interlock/Float; If Used

1шт.

15

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

17

87725339

BRACKET

Console Bracket, LH

1шт.

18

291308

SEALING STRIP,0.75" W x 0.5" Thick

1036mm (40 13/16 in.) Required

1шт.

19

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

If Used

4шт.

19

87758381

SCREW,1"

BUTTON SOCKET HD M10X40 10.9 ZND; If Used

4шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

22

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

24

291809

SEALING STRIP

0.3 FT Required

1шт.

25

86625144

SNAP RING,#18, Ext

If Used

1шт.

Выбрано товаров: 28
