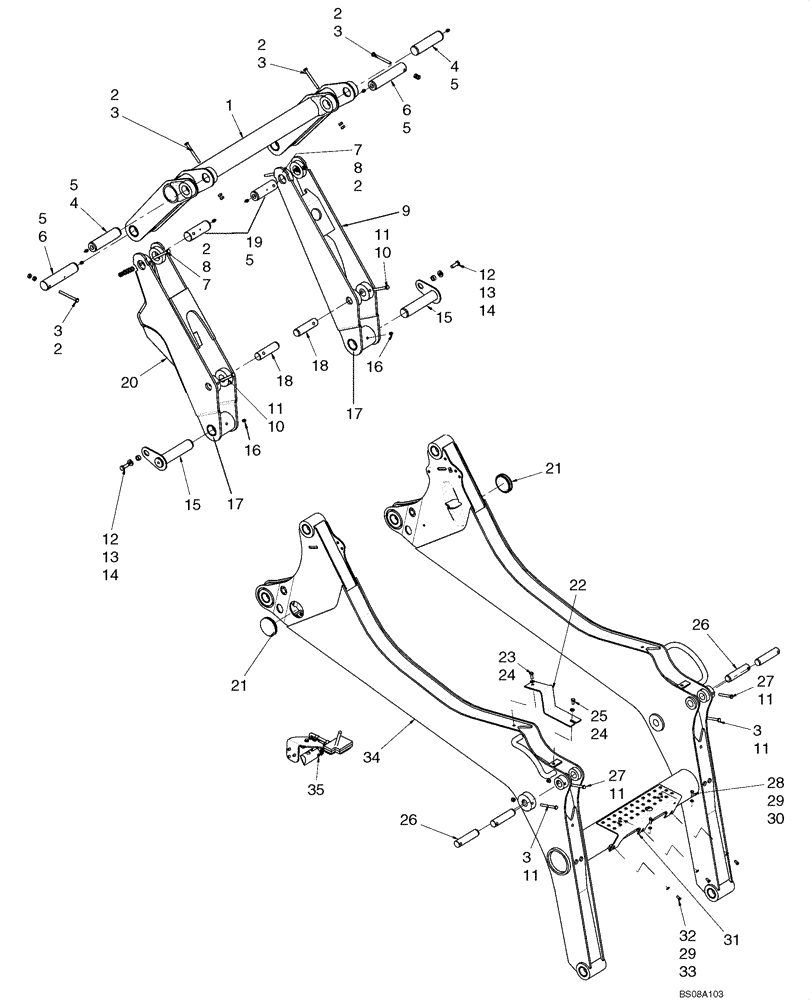

Запчасти Case IH 445CT (09-02) - FRAME - LOADER LIFT (09) - CHASSIS

1

277539A2

FRAME ASSY

Loader H-Frame; See Fig 09-04

1шт.

2

86500689

NUT,M10 x 1.5, Cl 10

12шт.

3

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

6шт.

4

139086A1

PIN,45mm OD x 176mm L

2шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

6шт.

6

139087A1

PIN,45mm OD x 212mm L

2шт.

7

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

330779A1

ROD, CONNECTING

Control Link, LH

1шт.

10

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

11

86512554

NUT,M10 x 1.5, Cl 10

6шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

14

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

15

254431A2

PIN

2шт.

16

87019498

FITTING

Lubrication Fitting, Special

2шт.

17

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

18

199896A1

PIN,35mm OD x 124mm L

2шт.

19

179637A1

PIN,45mm OD x 134mm L

2шт.

20

330787A2

LINK

Control Link, RH

1шт.

21

313677A1

COVER

2шт.

22

198786A1

COVER

1шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

25

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

26

139089A1

PIN,35mm OD x 149mm L

4шт.

27

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

29

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

30

122158A1

NUT,M8, U

2шт.

31

87620407

PLATE

Upper Step

1шт.

32

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

33

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

34

87636517

ARM

Loader Arm; Incl Decals

1шт.

35

REF

INSTRUCTION

Loader Support; See Fig 09-03

1шт.
