Запчасти Case IH 445CT (08-05) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

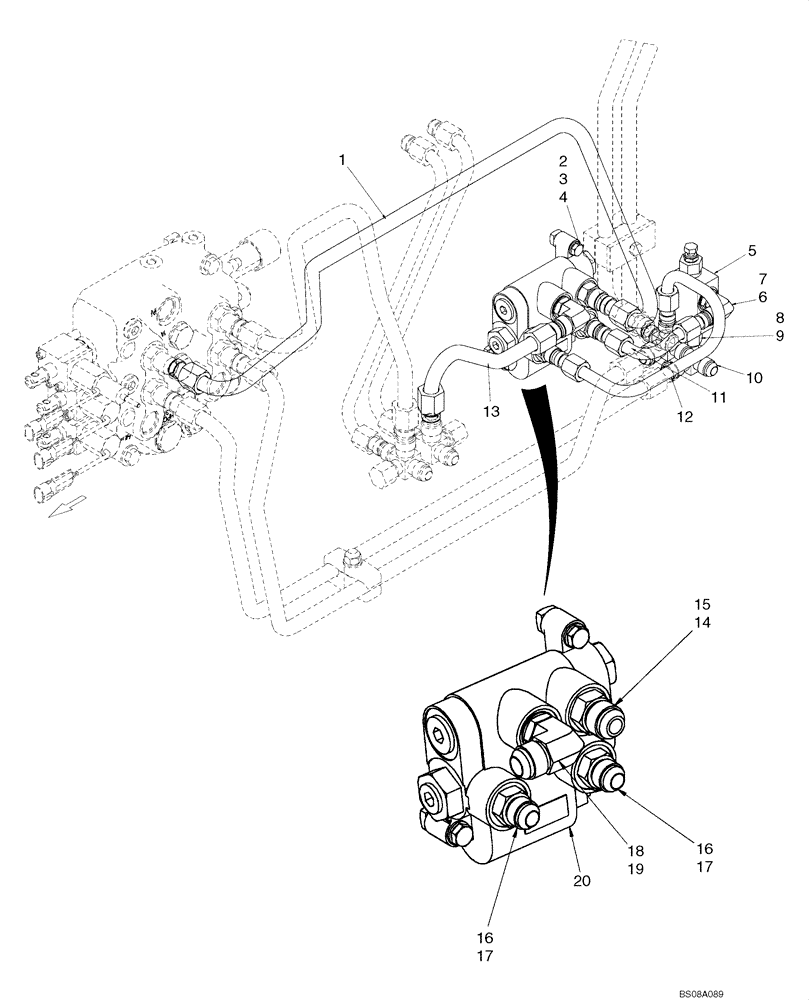

Схема запчастей Case IH 445CT - (08-05) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS
20
5
6
10
16
17
16
8
17
9
12
1
14
4
13
3
18
7
19
2
15
11

Артикул

Название

Примечание

Количество

87723871

SERVICE KIT

Kit, Hydraulic Self Level; Incl 1 - 20

1шт.

1

87520122

HYD TUBE,11.7 mm ID x 15.9 mm OD

Tube, Valve In

1шт.

2

87030567

SQUARE NUT

2шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

294650A1

VALVE

Relief Valve

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 7

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

1327736C1

ELBOW

Incl 9

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

280107A1

TEE

2шт.

11

87723321

HYD TUBE,12.7 mm OD x 84.7, 75.3 mm L

Tube, Valve Bucket Rod

1шт.

12

87723323

HYD TUBE,12.7 mm OD x 143.8 mm L

Tube, Valve Bucket Base; If Used

1шт.

12

87482862

HYD TUBE,12.7 mm OD

Tube, Valve Bucket Base

1шт.

13

87435920

HYD TUBE,15.88 mm OD

Tube, Valve Out

1шт.

14

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 15

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 17

2шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 19

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

280126A2

VALVE

Self Level Valve; See Fig 08-06

1шт.

Выбрано товаров: 22
