Запчасти Case IH 445CT (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

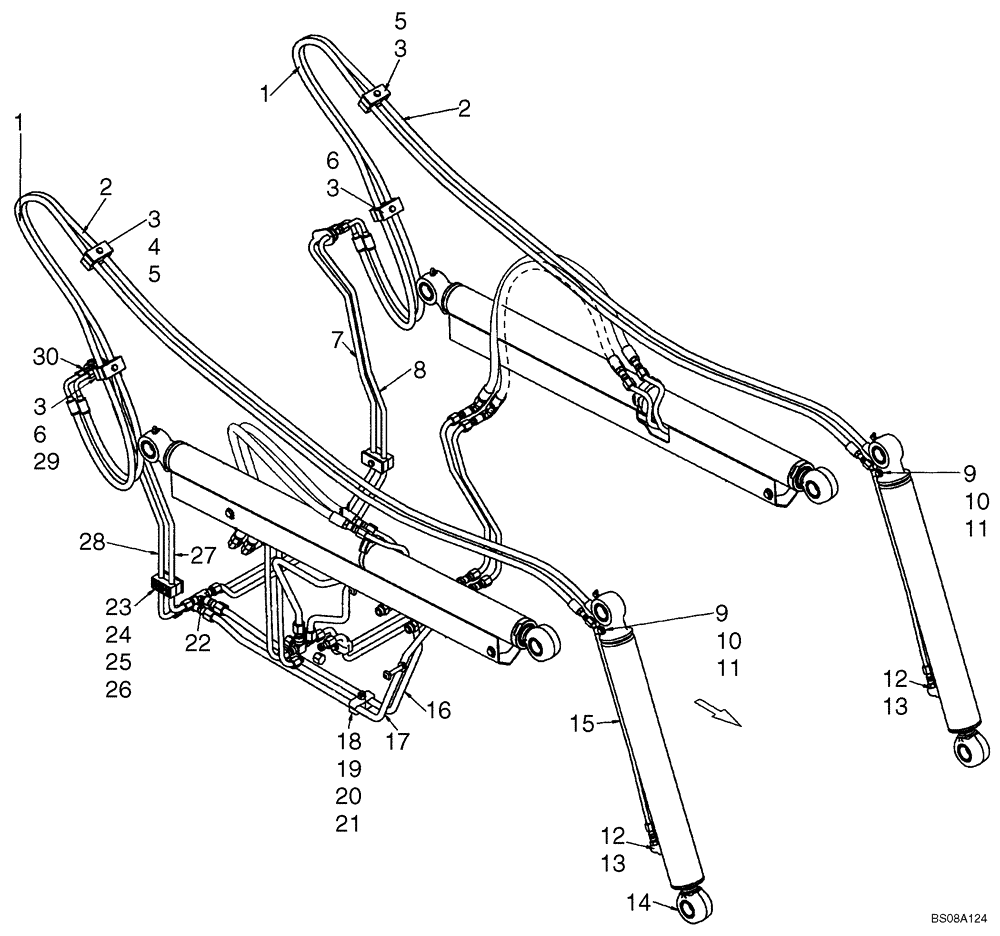

Схема запчастей Case IH 445CT - (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS
30
12
29
18
5
3
5
26
6
17
14
9
7
2
2
10
12
11
9
3
20
6
16
25
28
23
6
4
22
15
1
11
21
13
10
27
8
1
24
3
19
13

Артикул

Название

Примечание

Количество

1

87491436

HOSE

Hose, Tip Cylinder Rod End, 3275mm (129 in.); Replaces 87702980

2шт.

2

87487086

HOSE

Hose, Tip Cylinder Base End, 3250mm (128 in.); Replaces 87702979

2шт.

3

257857A1

CLAMP

4шт.

4

293891A1

SPACER

2шт.

5

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

6

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

7

87714758

HYD TUBE,12.7 mm OD x 669, 660.9 mm L

Tube, Curl, LH

1шт.

8

87714669

HYD TUBE,12.7 mm OD x 669 mm L

Tube, Dump, LH

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 13

4шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

14

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Cylinder, Tip; See Fig 08-04

2шт.

14

258426A3R

445 ASN N7M454787, 445CT ASN N8M458846, Both w/Tier 3 Engine

REMAN-HYD CYLINDER

2шт.

14

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

15

254351A4

TUBE,591 mm Length

Tube, Tip Cylinder Rod End

2шт.

16

87436561

HYD TUBE,15.9 mm OD

Tube, Valve Tip (Dump)

1шт.

17

87436559

HYD TUBE,15.9 mm OD x 760.9, 352.5 mm L

Tube, Valve Tip (Curl)

1шт.

18

D120613

CLAMP,20mm ID

1шт.

19

86512554

NUT,M10 x 1.5, Cl 10

2шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

21

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

22

87032909

HYD CONNECTOR

Tee, Union 37Fl 1/2 X 1/2 X 5/8

2шт.

23

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

24

259905A1

SPACER

Spacer, 1/4 Pipe X 31 1/4 Long

2шт.

25

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

6шт.

26

257919A1

CLAMP BRACKET

2шт.

27

87703307

TUBE

Tube, Dump, RH

1шт.

28

87702961

TUBE,12.7 mm OD x 681, 120.2 mm L

Tube, Curl, RH

1шт.

29

293892A1

SPACER

Spacer, 1/4 Pipe X 38 1/2 Long

2шт.

30

376523A2

SUPPORT,1/2"

4шт.

Выбрано товаров: 32
