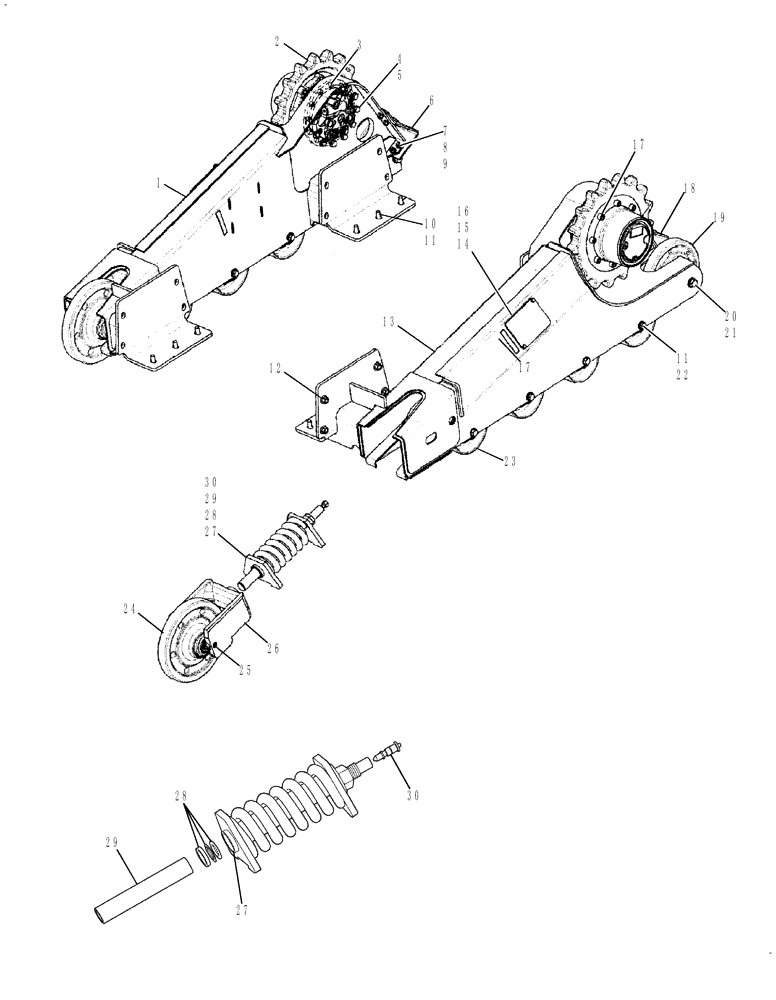

Запчасти Case IH 445CT (06-58A) - FINAL DRIVE (445CT) BONFIGLIOLI DRIVE MOTORS (06) - POWER TRAIN

1

87474815

FRAME

Track Frame RH, Used with Bonfiglioli Drive Motors

1шт.

2

87460888

SPROCKET

17 Tooth-86 Pitch

2шт.

3

87583105

SPACER,214mm ID x 280mm OD x 13.25mm Thk

Spacer Motor

2шт.

4

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

24шт.

5

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

6

87459518

SCRAPER

Scrapper Plate RH

1шт.

7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

If Used

8шт.

8

337475

NUT,M12, Cl 10

If Used

8шт.

9

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

If Used

8шт.

17

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

M16 x 45 Cl 12.9 Znd; If Used

16шт.

10

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

11

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

28шт.

12

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

13

87474813

FRAME

Track Frame LH, Used with Bonfiglioli Drive Motors

1шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

87354210

COVER

Plate Cover

2шт.

17

87588869

HEX SOC SCREW,M16 x 45mm, Cl 10.9

Screw Hex Soc M16 x 45 Cl 10.9 Znd

16шт.

18

87459517

SCRAPER

Scapper Plate LH

1шт.

19

87480413

IDLER,290mm OD x 220mm W

Rear Idler

2шт.

20

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

21

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

22

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

23

87480419

TRACK ROLLER

P/n includes Roller Shell, Shaft, Brackets, Plugs, O-rings, Sealing Rings, Bushings- All NSS

8шт.

24

87480418

FRONT IDLER,350mm OD x 194mm W

Front Idler

2шт.

24

47378990R

REMAN-WHEEL IDLER

Front Idler

2шт.

24

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

25

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

26

87462287

YOKE

Front Idler Yolk, Gray

2шт.

27

87602985

TENSIONER

Cylinder, Spring Tensioner; Incl 28-30

2шт.

28

87602987

SERVICE KIT

Kit For 87602985; Incl Scraper, Spacer, O-Ring

1шт.

29

87602988

ROD

1шт.

30

87356572

VALVE

Grease Valve

1шт.

84213764

CAP

Cap, Grease Valve For Tension Spring 87602985

1шт.
