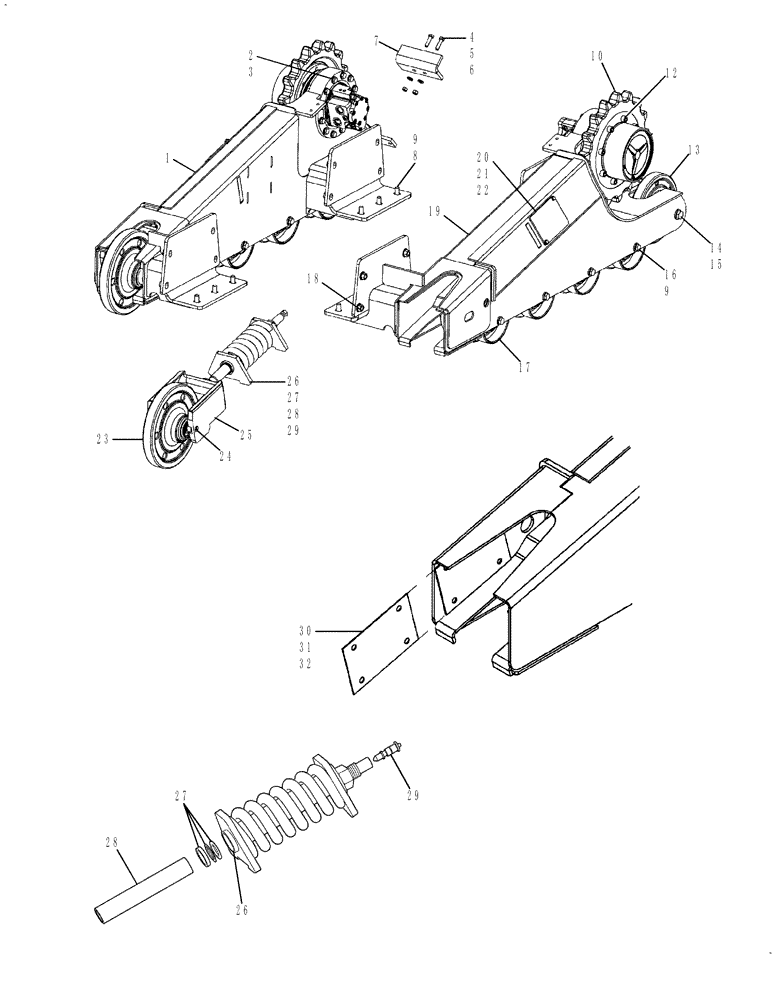

Запчасти Case IH 445CT (06-58) - FINAL DRIVE (445CT) REXROTH DRIVE MOTORS (06) - POWER TRAIN

1

87582825

SWING CARRIAGE

RH; If Used

1шт.

1

87669355

FRAME

Track Frame RH, Used with Rexroth Drive Motors

1шт.

2

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

3

87303344

BOLT,Hex, M14 x 85mm, Cl 10.9

24шт.

4

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

5

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

6

337475

NUT,M12, Cl 10

4шт.

7

87589343

PLATE

Scraper Plate

2шт.

8

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

9

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

28шт.

10

87460888

SPROCKET

17 Tooth,86 Pitch

2шт.

12

87303345

HEX SOC SCREW,M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

13

87480413

IDLER,290mm OD x 220mm W

Replaces 87447230; 87535299

2шт.

14

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

15

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

16

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

17

87535297

TRACK ROLLER

If Used

8шт.

17

87480419

TRACK ROLLER

If Used; P/n includes Roller Shell, Shaft, Brackets, Plugs, O-rings, Sealing Rings, Bushings- All NSS

8шт.

18

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

19

87669353

FRAME

Track Frame LH, Used with Rexroth Drive Motors

1шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

22

87354210

COVER

2шт.

23

87480418

FRONT IDLER,350mm OD x 194mm W

350 mm, Front; Replaces 87462176, 87535298

2шт.

23

47378990R

REMAN-WHEEL IDLER

350 mm, Front

2шт.

23

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

24

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

25

87462287

YOKE

2шт.

26

87602985

TENSIONER

Cylinder, Spring Tensioner; Incl 27, 28, 29

2шт.

27

87602987

SERVICE KIT

Kit For 87602985; Incl Scraper, Spacer, O-Ring

1шт.

28

87602988

ROD

1шт.

29

87356572

VALVE

Grease Valve

1шт.

84213764

CAP

Cap, Grease Valve For Tension Spring 87602985

1шт.

30

87650011

SERVICE KIT

Shim Kit; Incl 31, 32

1шт.

31

87650010

PLATE

Plate, 16 Gage Shim

2шт.

32

87650009

PLATE

Plate, 12 Gage Shim

2шт.
