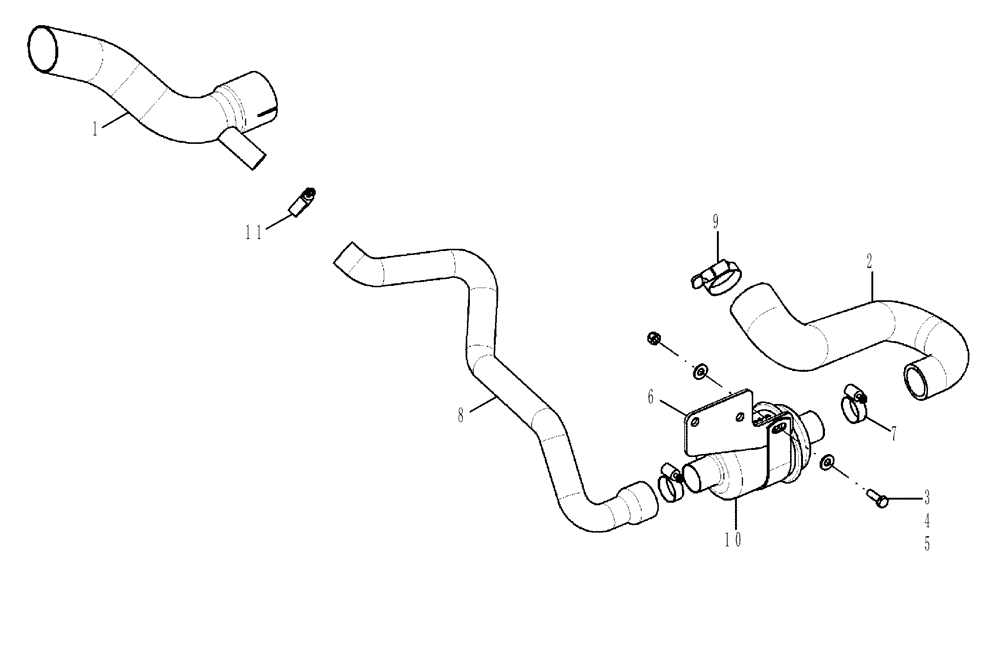

Запчасти Case IH 445CT (02-04[A]) - EXHAUST SYSTEM - ASPIRATOR 445-ASN 408232; 445CT-ASN 419313 (02) - ENGINE

84241118

Aspirator; Incl. 1 - 11

SERVICE KIT

1шт.

1

84218369

Exhaust Aspirator

TUBE,57.15 mm OD x 300 mm L

1шт.

2

84138639

INTAKE AIR HOSE,38.00 mm ID, 50.00 mm ID x 200.30 mm, SAE J200

Air Cleaner to Aspirator

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

87490990

BRACKET, SUPPORTING

1шт.

7

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

8

84138177

HOSE,24.50 mm ID, 38.00 mm ID x 382.10 mm, SAE J20R4 Class D1 or SAE J200

Tailpipe to Aspirator

1шт.

9

84137995

HOSE CLAMP,SAE #36 OD

Turnkey Grip 36

1шт.

10

406089A2

VALVE

Aspirator Check Valve

1шт.

11

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.
