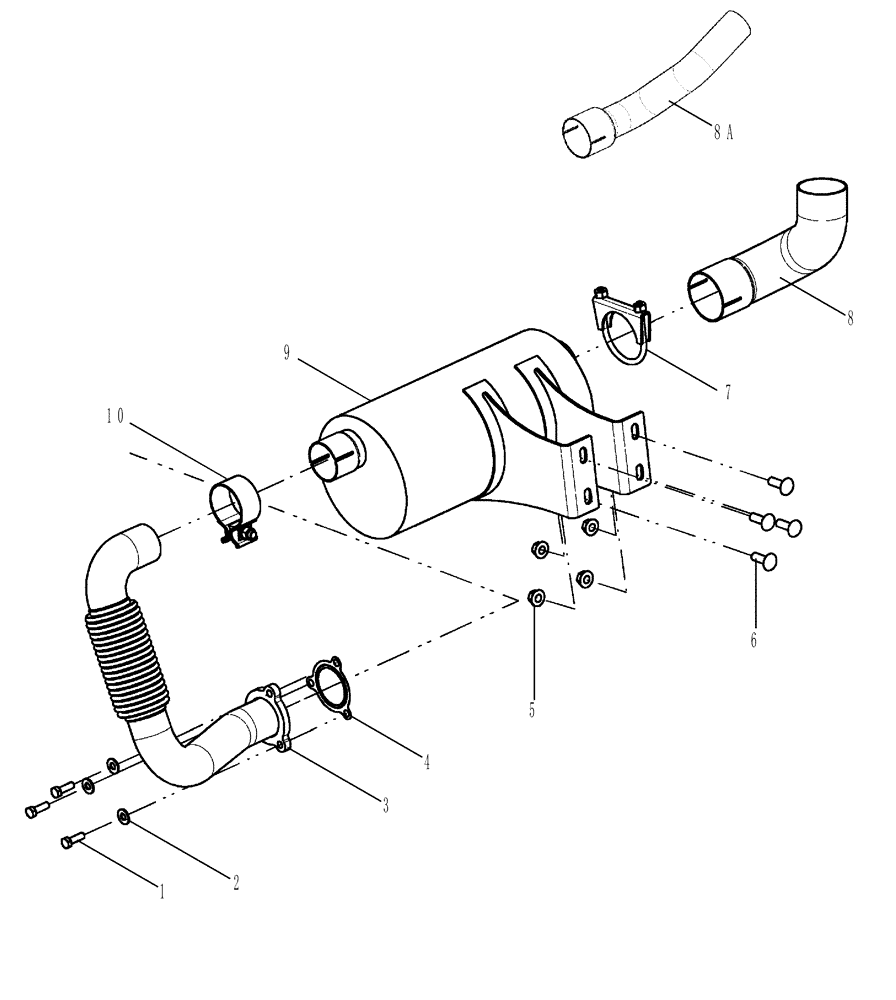

Запчасти Case IH 445CT (02-03) - EXHAUST SYSTEM (02) - ENGINE

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

3

87632396

EXHAUST SYSTEM PIPE

Flexible Exhaust Coupler

1шт.

4

87611895

GASKET,0.4mm Thk

Muffler Gasket

1шт.

5

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

6

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

7

87461995

CLAMP,68mm ID, Muffler

1шт.

8

87657837

MUFFLER

Tailpipe (445 - BSN 408234) (445CT - BSN 419315)

1шт.

8a

84209260

EXHAUST SYSTEM PIPE

Tailpipe (445 - ASN 408233) (445CT - ASN 419314)

1шт.

9

87657835

MUFFLER

1шт.

10

87644690

CLAMP

1шт.

11

87696528

COVER

Muffler Wrap (Europe); Not Illustrated

1шт.

12

87393399

SPRING

Stainless Ties; Used To Secure Muffler Wrap; Not Illustrated

5шт.
