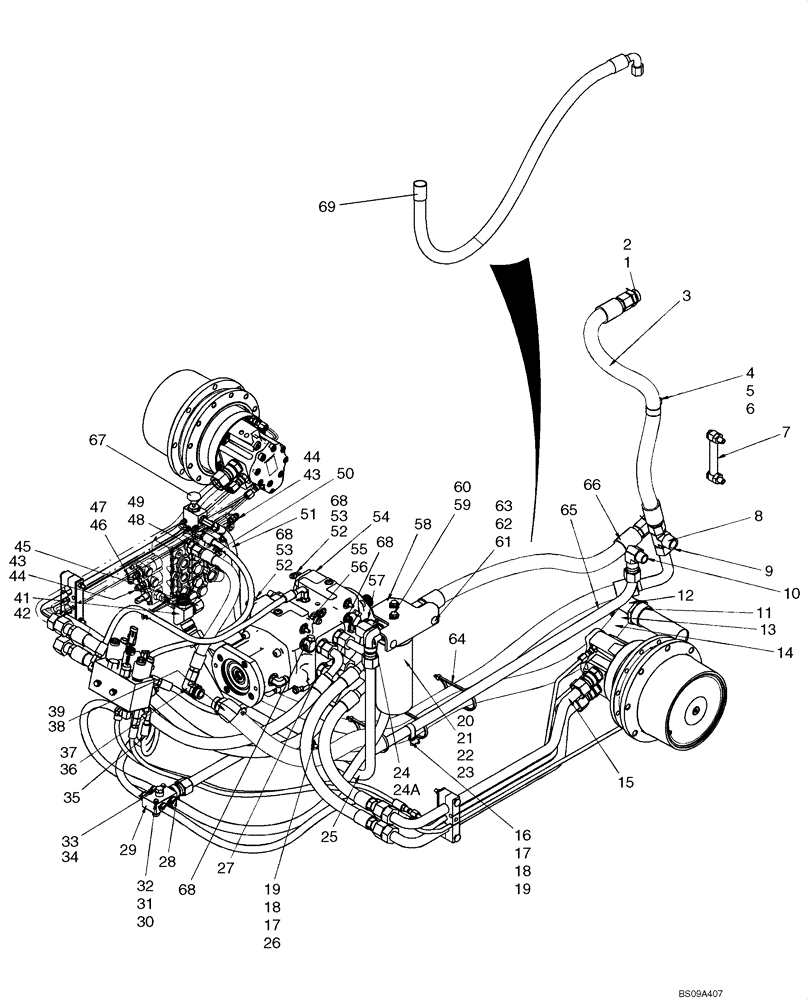

1
378970
HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC
Incl 2
2-3шт.
2
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
3
87659201
HOSE
Hose, Upper Cooler, 885mm (34 13/16 in.)
1шт.
4
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
1шт.
5
87648719
CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type
Clamp, 36.5mm 3/8 in. Bolt
1шт.
6
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
1шт.
7
87374752
GAUGE
Liquid Level Gauge
1шт.
8
87396046
HOSE
Hose, Charge Suction, 1500mm (59 1/16 in.) Length; No Longer Used, Order 87719074
1шт.
8
87719074
HOSE
Hose, Charge Suction, 1525mm (60 in.) Length
1шт.
9
9790547
TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br
1шт.
10
9615396
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF
If Used
1шт.
11
189310A1
STRAINER ASSY.
1шт.
12
87029969
HYD CONNECTOR
1шт.
13
87039085
HOSE CLAMP,32mm - 54mm
2шт.
14
87597549
HYDRAULIC HOSE,31.75 mm ID x 1320.00 mm, SAE 100R4
1шт.
15
REF
INSTRUCTION
Drive Motor Hydrostatics; Under Carriage Plumbing
1шт.
16
86637977
CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type
1шт.
17
122158A1
NUT,M8, U
2шт.
18
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
2шт.
19
140016
WASHER,M8 x 16mm OD x 1.6mm Thk
If Used
2шт.
20
87430661
FILTER
Incl 21 - 23
1шт.
21
N13268
PRESSURE SWITCH
1шт.
22
87010593
ELEMENT
Filter Element, CASE
1шт.
23
87439984
FILTER HEAD
Head Assembly
1шт.
24
268277
90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB
Incl 24A
1шт.
24a
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
25
87419597
HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L
Tube, Valve Outlet
1шт.
26
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
1шт.
27
87554297
HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L
Tube, Tandem Pump Supply
1шт.
28
87443511
CLAMP,22mm - 26mm, CTB-24, Style C
2шт.
29
87437351
MANIFOLD
Return Oil Manifold
1шт.
30
86517328
LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk
2шт.
31
87404992
SQUARE NUT,M6 x 1.0, Cl 8
2шт.
32
86977790
BOLT,Hex, M6 x 45mm, Cl 8.8
2шт.
33
76349
PLUG,9/16" - 18 ORB
Incl. 34
1шт.
34
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
35
87597998
HOSE
Hose, Brake RH, 750mm (29 1/2 in.)
2шт.
36
84570
90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB
Incl 37
1шт.
37
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
38
87033824
FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded
Incl 39
1шт.
39
237-6016
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
41
87421217
ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB
Incl 42
1шт.
42
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
43
84384
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
Incl 44
3шт.
44
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
45
219606
CAP,1-1/16" - 12 JIC
1шт.
46
87593247
ELBOW
Incl 47
1шт.
47
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
48
86507102
HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC
Incl 49
1шт.
49
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
50
87597562
HOSE,15.88mm ID x 500mm L
Hose, Valve Supply, 500mm (19 11/16 in.)
1шт.
51
87597582
HOSE,9.53mm ID x 650mm L
Hose, Dump Valve Supply, 650mm (25 9/16 in.); If Used
1шт.
51
87547043
HOSE,9.53mm ID x 773mm L
Dump Valve Supply
1шт.
52
86512936
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
Incl 53
2шт.
53
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
54
87546977
PUMP,46 CC
Rexroth Pump, A22 - 360 Bar, 5.7mm Orifice; See Fig 06-38
1шт.
54
87546977R
Remanufactured Hydraulic Pump
REMAN-HYD PUMP
1шт.
54
87546977C
Return Number
CORE-HYDRAULIC PUMP
1шт.
55
128818
UNION,3/4" - 16 ORB x 3/4" - 16 JIC
Incl 56; If Used
1шт.
55
81827427
HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB
Connector 37FL X ORB -08; Incl 56
1шт.
56
128825
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
57
87564723
WASHER,15.3mm ID x 28.5mm OD x 6mm Thk
Washer, 15.3 X 28.5 X 6mm
4шт.
58
87707681
ANGLE
Filter Mount; Replaces 87458340
1шт.
59
43139
BOLT,M10 x 1.5 x 25mm, Cl 8.8
2шт.
60
86639325
WASHER,10.8mm ID x 24.5mm OD x 3mm Thk
2шт.
61
86633356
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
2шт.
62
100016
NUT,M10 x 1.5, Cl 8
2шт.
63
140028
WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk
2шт.
64
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
3шт.
65
87437352
HYD TUBE,25.40 mm OD
Tube, Case Drain
1шт.
66
87659213
HOSE
Hose, Lower Cooler, 1010mm (39 3/4 in.)
1шт.
67
87568435
DECAL
Boom override
1шт.
68
87604074
ADAPTER
6FJ x 6 MJ W/ 1.2 Orifice
4шт.
69
87659222
Oil Cooler Bypass; See Fig 08-10A
1шт.
