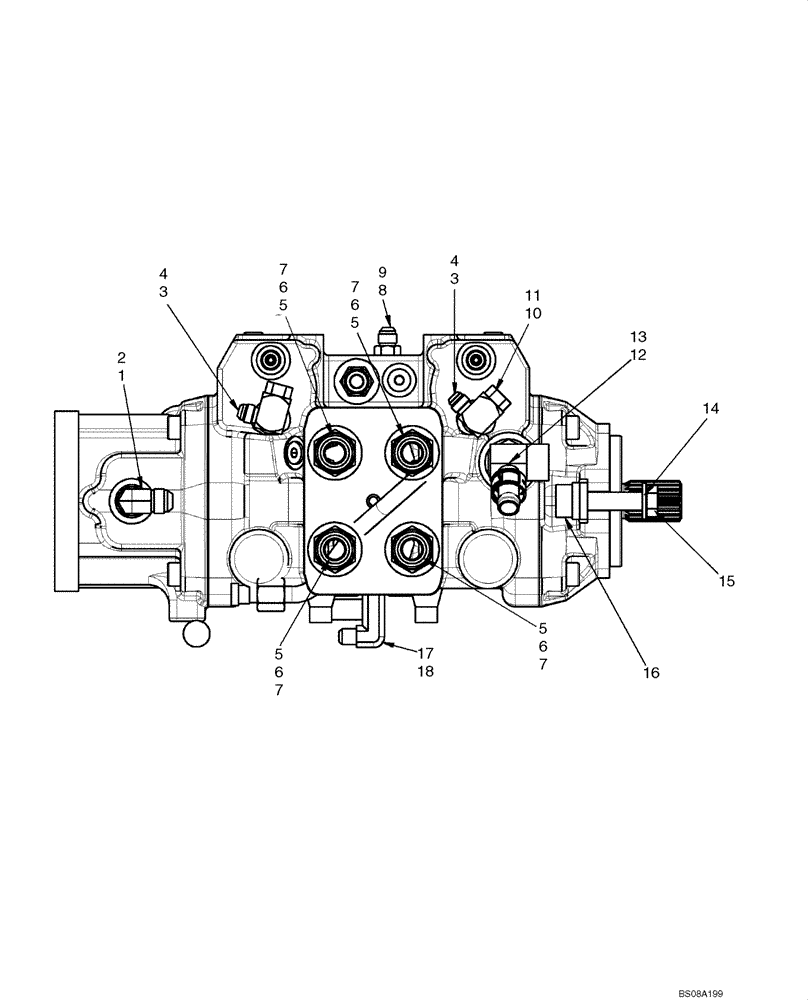

Запчасти Case IH 445CT (06-15) - HYDROSTATICS - PUMP FITTINGS (445CT WITH PILOT CONTROL) (06) - POWER TRAIN

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 2

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87546979

ADAPTER

Incl 4

2шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 6, 7

4шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 9

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11; If Used

2шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

If Used

1шт.

12

87571937

ADAPTER

Incl 13

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

15

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

16

87637186

NUT

2шт.

17

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
